Specialized Non Woven Bag Making Machine: Agriculture, Medical & Food Grain Solutions
A specialized non woven bag making machine extends automated converting beyond commodity retail carriers into high-margin industrial applications: biodegradable PLA agricultural nursery seedling bags, medical-grade SMS barrier packaging, and sift-proof food grain sacks (Atta flour, rice, and refined sugar). Engineered with modulated acoustic ultrasonic generators (15/20/28 kHz), cold rotary slitting knives to prevent micro-particulate fraying, and reinforced anti-sifting gusset fold tooling, OYANG specialized conversion platforms deliver continuous speeds of 60–120 bags/min while maintaining hermetic weld seals and customized substrate breathability.
Zero powder leakage for 5kg–10kg Atta flour and sugar bags via multi-fold acoustic hem sealing.
Precision ultrasonic energy gating tailored for sensitive, low-melting PLA biodegradable polymers.
Cold-shear ultrasonic rotary cutters ensuring clean, particle-free edges for medical cleanrooms.
Automated high-throughput conversion for high-volume agricultural seedling and fruit barrier bags.
Sector 1: Agriculture Seedling & Plant Growth Nursery Bags
Commercial horticulture is replacing non-recyclable black polyethylene poly-tubes with biodegradable nonwoven seedling bags. These containers allow plant roots to breathe, prevent root circling (air pruning), and can be transplanted directly into the soil without tearing the bag:
1. Bio-Degradable PLA Substrate Acoustic Sensitivity
Agricultural root containers typically utilize 100% Polylactic Acid (PLA) or PLA + PBAT composite spunbond nonwoven (25–40 g/m²). Unlike conventional polypropylene (PP) which melts at 165°C, PLA has a low glass transition temperature of 55°C–60°C. Conventional ultrasonic horns easily burn, embrittle, or perforate PLA webs. OYANG specialized lines deploy dynamic amplitude-attenuated 28 kHz ultrasonic transducers. By controlling the mechanical horn vibration amplitude within 18μm to 25μm and applying microsecond acoustic bursts, fibers fuse at their molecular interface without thermal crystallization, preserving root penetration permeability.
2. Multi-Lane High-Speed Output Architecture
Because nursery bags feature compact dimensions (e.g., 8cm × 10cm to 15cm × 20cm), OYANG outfits the machine with dual-lane or triple-lane slitting and sealing arrays. A single roll feed is slit inline into multiple parallel ribbons, concurrently producing up to 180 to 240 seedling bags per minute with automated count batching.
Sector 2: Medical Consumables & Sterilization Barrier Packaging
Medical-grade conversion encompasses surgical instrument collection pouches, breathable steam/ETO sterilization covers, and fluid collection bags requiring stringent particulate containment:
1. SMS Fabric Handling & Cold Ultrasonic Slitting
Medical packaging uses Spunbond-Meltblown-Spunbond (SMS) composite fabrics (40–60 g/m²). The internal sub-micron meltblown layer provides bacterial filtration efficiency (BFE ≥ 99%), but can be easily damaged by conventional mechanical razor slitting, releasing lint and fibers. OYANG integrates rotary ultrasonic cold-weld cutting wheels that slit and edge-seal the SMS fabric simultaneously, locking raw fiber ends into a smooth bead that prevents cleanroom contamination.
2. Breathable Membrane Heat-Sealing Compatibility
For medical sterilization pouches requiring a nonwoven backer welded to a transparent medical film (PET/PP peelable laminate), the sealing jaw tooling features precision micro-patterned knurling with integrated thermocouple feedback accurate to ±1.0°C. This ensures peelable seam strength within ISO 11607 standards (1.5 N/15mm to 3.0 N/15mm) without seal creep or pinholes.
Sector 3: Food Grain & Powder Sacks (Atta Flour, Rice & Sugar)
Packaging retail staple grains—specifically wheat flour (Atta), basmati rice, and crystalline sugar in 5kg, 10kg, and 20kg retail packs—requires equipment engineered to overcome fine particulate sifting and high drop impacts:
| Engineering Parameter | Conventional Stitched Bag (Sewing Line) | OYANG Specialized Sift-Proof Nonwoven Bag Line |
|---|---|---|
| Bottom & Side Seam Technology | Needle-punched chain stitch with sewing thread | Continuous high-power 15 kHz acoustic weld + double reverse hem fold |
| Powder Sifting (Atta & Sugar Fines) | High leakage rate through needle puncture points | 100% Hermetic seal; zero powder leakage |
| Structural Material Base | Porous single-layer woven or paper bag | Extrusion-laminated BOPP + Nonwoven (Breathable or barrier) |
| Handle Load Resistance | Stitched loop handles rip at thread perforation lines | Cross-welded multi-layer ultrasonic loop handles (>250 N tensile) |
| Converting Output | 30–45 bags/min (Limited by sewing head speed) | 70–90 bags/min (Continuous automated cycle) |
| Moisture Absorption Risk | High humidity ingress through seams causes flour caking | Laminated moisture barrier preserving grain freshness |
Engineering the Anti-Sifting Seam: OYANG Reverse Hem Tooling
Fine wheat flour particles (average particle size 50–100 μm) readily escape through minute pinholes. OYANG specialized food packaging machines eliminate dusting through a multi-stage mechanical folding module:
- Initial Acoustic Base Weld: The bottom edge of the formed tube undergoes high-pressure ultrasonic welding, creating a continuous molecular melt line across all layers.
- Pneumatic 180° Reverse Hem Fold: A mechanical sword blade tucks the welded bottom flange upward by 15mm to 20mm, folding the primary weld seam inside the bag structure.
- Secondary Over-Lock Ultrasonic Sealing: A secondary heavy-duty acoustic horn descends upon the folded hem, welding the folded flap to the main body fabric. This creates a tortuous, dual-barrier acoustic seal that completely prevents fine flour or sugar crystals from migrating outward under rough transport handling.
- Inline Punch Handle Reinforcement: For 5kg to 10kg carry bags, an automatic reinforcement patch is fed from an auxiliary unroller and sonically welded inside the bag mouth before oval punch cutting, preventing handle tearing when carried by retail shoppers.
Recommended OYANG Specialized Converting Machinery
Engineered inside OYANG’s 130,000&mflat; CNC manufacturing center to ≤ 0.015mm machining tolerances, these specialized models adapt to non-standard substrates and structural bag styles:

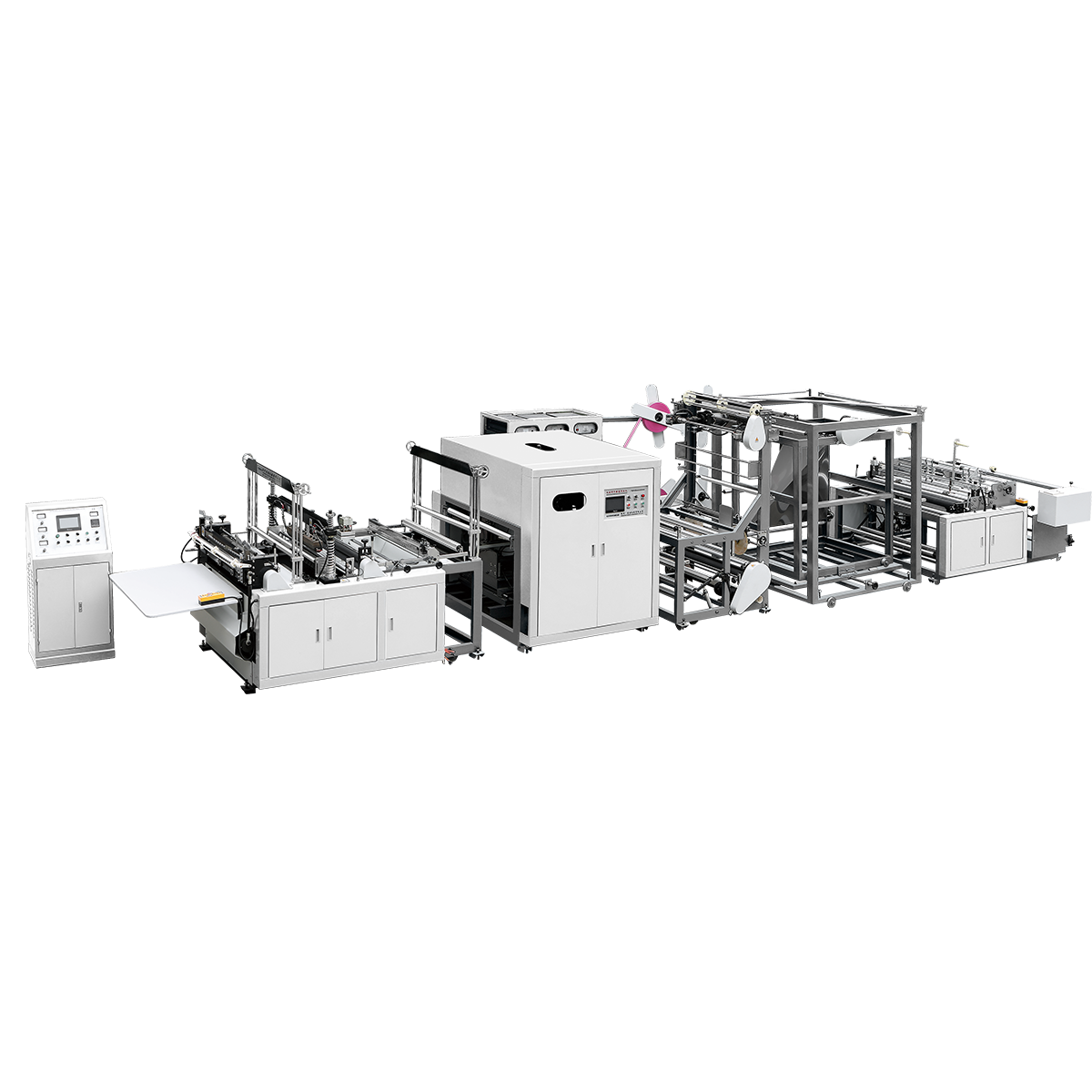

XC700/800 Specialized Converting Machine
Versatile high-speed platform adaptable for agricultural nursery seedling bags, medical draw-tape pouches, and specialized shoe dust bags with modular tooling inserts.
- Converting Speed: 40–100 bags/min (Up to 200+ on multi-lane seedling tooling)
- Substrate Range: 25–100 g/m² PLA, PBAT, SMS, and Virgin PP
- Registration Control: High-sensitivity photoelectric tracking
OYANG 16S Heavy-Duty Box Bag Machine
Configured specifically for 5kg to 15kg Atta flour, rice, and agricultural seed packaging. Features rigid 3D box formation with anti-sifting hermetic bottom welds.
- Converting Velocity: 60–80 bags/min
- Seam Reinforcement: Dual-pass ultrasonic weld tooling
- Payload Capacity: Safely handles 5kg–15kg heavy grain loads
XG1200 Industrial Garment & Cover Line
Specialized machine designed for extra-long industrial covers, medical body protection bags, and premium retail suit covers with inline zipper insertion.
- Bag Length Range: Up to 1,600mm oversized formats
- Inline Operations: Automatic zipper feeding, ultrasonic edge stitching
- Output Speed: 20–35 finished covers/min
