Automatic Flatbed Die Cutting Machine Series
Engineered to eliminate knife-underlay patching, edge crushing, and post-press labor bottlenecks, OYANG's high-speed automatic die cutting machine portfolio automates sheet feeding, platen impression, and waste stripping in a unified cycle. Built on heavy-gauge QT600-3 nodular iron frames, each flatbed die cutting machine in our lineup delivers up to 8,500 sheets/hr operational velocity and ±0.075 mm dynamic registration precision. Whether configured for high-tonnage creasing (up to 600 Ton embossing load) or multi-ribbon hot foil stamping, this versatile industrial die cutting machine family provides carton and corrugated box converters with zero-burr blank separation across sheets up to 1,650 mm wide.
OYANG Flatbed Die Cutting Machine Series
Four specialized series covering die cutting only, die cutting with waste stripping, heavy-load embossing, hot foil stamping, and dual-unit tandem systems — engineered for diverse packaging volumes.
Easycut SS Series
Automatic die cutting and stripping machines spanning 1050 mm to 1650 mm widths. Reaches 8,500 sheets/hr with 400–450 Ton platen pressure and ±0.075 mm accuracy. Converts cardboard to A–F flute corrugated board.
Easyrobust SSR Series
Upgraded industrial die cutting machine incorporating a dedicated 600 Ton hydraulic embossing station. Finishes die cutting, internal waste stripping, and deep relief texture embossing in a single automated cycle.
Profoil SF Series
Inline hot foil stamping and precision flatbed die cutting in one pass. Features up to 20 independent PID heating zones, ±0.075 mm accuracy, and 400 Ton pressure. Supports holographic and flat foil registration for wine and cosmetics.
Duomatic FSS Series
Dual-unit flatbed machine completing hot foil stamping, die cutting, and waste stripping in a continuous synchronized pass. Delivers 80–100% higher production output compared to standalone converting units.
Engineering Benchmark: Which Series Fits Your Production?
Cross-evaluate speed ceilings, platen tonnage, heating zones, and corrugated board capacities across all four die cutting series.
| Engineering Metric | Easycut SS | Easyrobust SSR | Profoil SF | Duomatic FSS |
|---|---|---|---|---|
| Die Cutting Function | ✔ | ✔ | ✔ | ✔ |
| Waste Stripping Section | ✔ | ✔ | — | ✔ |
| Hot Foil Stamping Section | — | — | ✔ | ✔ |
| Heavy Embossing Station | — | ✔ 600 Ton | — | — |
| Dual-Unit Synchronization | — | — | — | ✔ |
| Max Sheet Width Range | 1050–1650 mm | 1050–1300 mm | 1050–1500 mm | 1050–1180 mm |
| Max Production Speed | 8,500 sh/hr | 8,500 sh/hr | 7,500 sh/hr | 7,000 sh/hr (Tandem) |
| Maximum Platen Load | 400–450 Ton | 600 Ton | 400 Ton | 400 Ton |
| Registration Accuracy | ±0.075 mm | ±0.075 mm | ±0.075 mm | ±0.1 mm |
| PID Heating Zones | — | — | 12–20 zones | 12–16 zones |
| Corrugated Substrate Flutes | F/E/B/C/A ≤ 6 mm | F/E/B/C ≤ 4 mm | F/E/B/C ≤ 6 mm | F/E/B/C ≤ 4 mm |
| Primary Packaging Target | Folding cartons, retail food packaging | Embossed rigid boxes, premium cartons | Wine labels, cosmetics, foiled gift boxes | Mass volume luxury packaging lines |

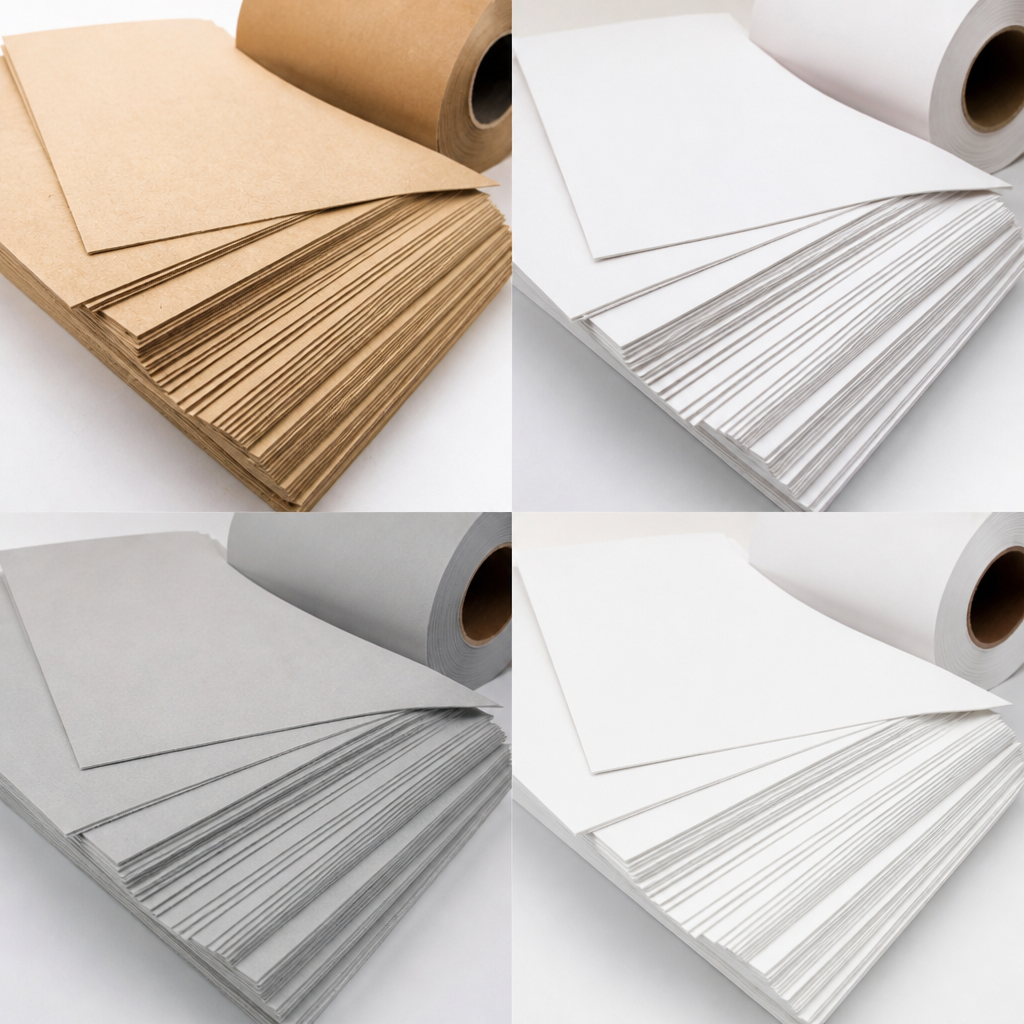

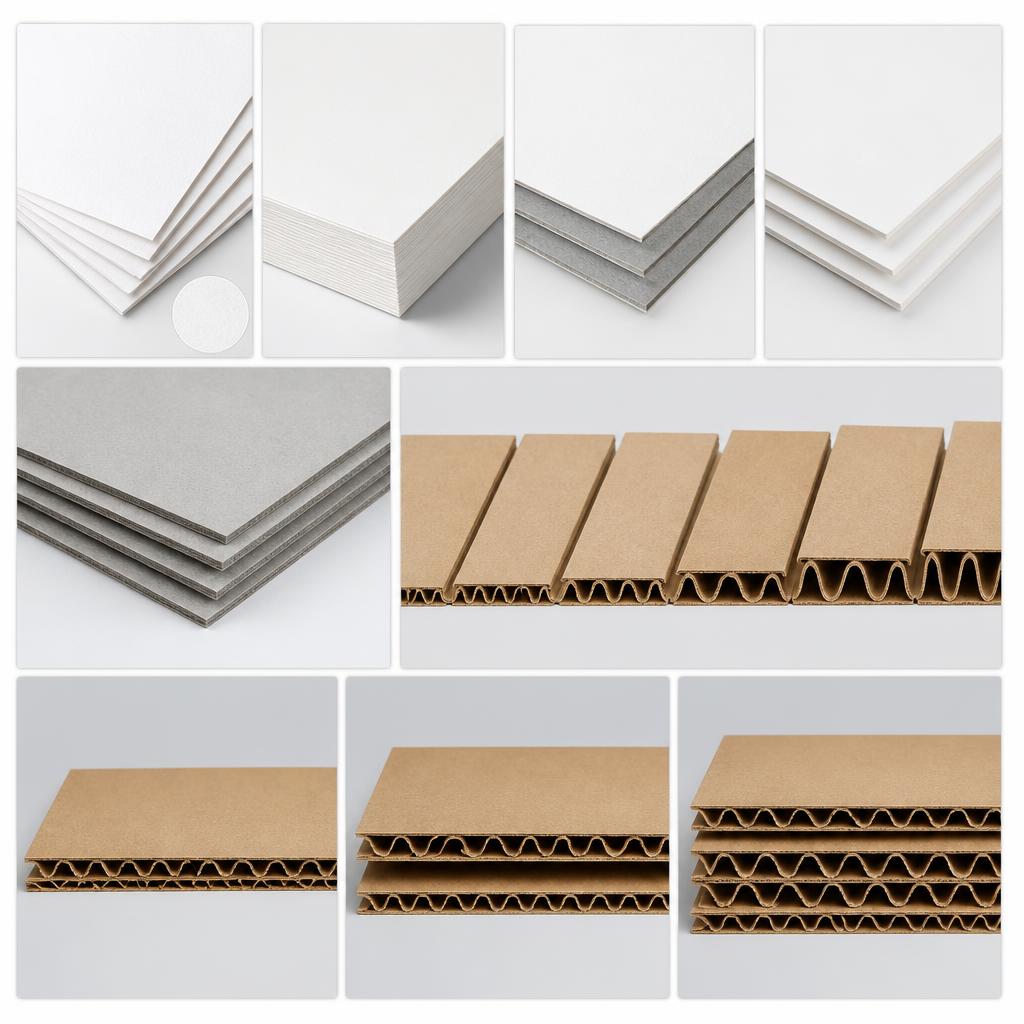

What Materials Can Be Processed?
OYANG flatbed die cutting machines handle a wide spectrum of packaging materials — from lightweight coated carton board to heavy multi-layer corrugated flutes.
Corrugated: F/E/B/C ≤ 4mm
PVC: 0.1–2mm
Corrugated: F/E/B/C/A ≤ 6mm
PVC: 0.14–2mm
Corrugated: F/E/B/C ≤ 4mm
Embossing: up to 600 Ton
Corrugated: F/E/B/C ≤ 4mm
PVC: 0.1–2mm
Corrugated: F/E/B/C/A ≤ 6mm
PVC: 0.14–2mm
Corrugated: F/E/B/C ≤ 4mm
Dual Synchronized Pass
Packaging Products Produced on OYANG Converting Lines
From luxury fashion paper bags to pharmaceutical cartons and heavy transport shipping boxes, OYANG flatbed die cutters ensure burr-free cuts and clean waste removal.
Watch OYANG Die Cutting Machines in Action
Observe sheet feeding acceleration, dynamic waste stripping, and dual-unit stamping cycles.
WH-2105FSS Dual-Unit Machine Overview
WH-2105FSS Engineering Features
Lead-Edge vs. Bottom Suction Feeder
EASYCUT 1180SS Live Converting
SS Series Full Process Demonstration
PROFOIL SF Foil Stamping System
PROFOIL 1180SF Application Fields
Platen Deflection Suppression & Precision Creasing Matrix
In an automatic die cutting machine, repetitive tonnage cycling causes frame micro-flexing, resulting in jagged paperboard cuts and premature steel rule wear. OYANG stabilizes dynamic toggle linkage motion through rigid structural tolerances machined across Japanese MAZAK and OKUMA five-axis centers:
| Engineering Subsystem | Rigidity & Tolerance Parameter | Shop-Floor Production Guarantee |
|---|---|---|
| Upper & Lower Platen Base | QT600-3 High-Density Nodular Cast Iron | Eliminates resonance vibrations under 450–600 Ton platen shock, extending steel cutting rule sharpness by > 35%. |
| MAZAK Platen Surface Planarity | ≤ 0.015 mm overall bed flatness | Delivers uniform knife penetration depth across 1,650 mm wide sheets without tedious manual tape patching. |
| Servo Gripper Bar Registration | ±0.075 mm dynamic optical alignment | Guarantees micro-step alignment between printed artwork, hot foil lines, and die cuts on 8,500 sh/hr runs. |
| Triple-Action Waste Stripping | Centerline rapid frame clamping system | Completely strips internal window apertures, lead edges, and lateral trim, eliminating downstream manual break-out labor. |
By coordinating high-rigidity crankshaft toggle kinematics with high-volume optical fiber register sensors, OYANG flatbed converting machines maintain consistent platen parallelism across multi-shift folding carton and corrugated box packaging runs.
Flatbed Die Cutting Machine — Frequently Asked Questions
Common engineering questions regarding model selection, platen tonnage, feeding mechanisms, and substrate tolerances.
1. What is an automatic flatbed die cutting machine?
2. What is the difference between OYANG SS, SSR, SF, and Duomatic FSS series?
3. Which die cutting series should I choose for luxury packaging with hot foil stamping?
4. What materials and thickness limits can OYANG flatbed die cutting machines process?
5. What registration accuracy do OYANG die cutting machines maintain?
6. What is the difference between a lead-edge feeder and a bottom suction feeder?
7. What is the maximum platen working pressure available for heavy embossing?
8. How many independent heating zones are available on the Profoil SF series?
Upgrade Your Plant with an Industrial Automatic Die Cutting Machine
Submit your target sheet dimensions, substrate GSM, required converting steps (cutting, stamping, or embossing), and monthly carton volume. OYANG engineering specialists will configure your optimal machine layout within 24 hours.
