Industrial Flexographic Printing Machine & CI Flexo Press Line
Engineered to resolve web stretching, register wander, and ink misting across extensible substrates, OYANG's industrial flexographic printing machine series delivers synchronized continuous reel-to-reel converting up to 250 m/min. Featuring our flagship ci flexo printing machine (Central Impression) architecture anchored by a precision-machined central drum (≤ 0.008 mm dynamic runout) and ceramic anilox metering, our presses maintain a color registration accuracy of ≤ ±0.10 mm across thin PE film, flexible barrier laminates, kraft paper, and spunbond nonwoven fabrics.
Eliminating Web Stretch & Color Shift Across Elastic Substrates
Converting flexible PE film or lightweight spunbond nonwoven fabrics through multi-station printing presents severe color registration errors due to elastic elongation under dynamic web tension. Converting facilities require precision anilox transfer, controlled infrared/hot-air impingement, and thermal drum stabilization to maintain repeat accuracy.
Structural Machine Alignment & Central Drum Stability
OYANG manufactures three specialized flexographic configurations: economical stack flexo (YTB) for rigid paper, central impression (CI) flexo (YTC) with a constant-temperature CI drum to anchor extensible films at 250 m/min, and heavy-duty unit-type inline flexo (FE) for high-tonnage carton pre-printing. All frames are CNC-machined to ensure total mechanical parallelism.
Central Impression (CI) Drum Dynamic Stability & Thermal Balance Matrix
In a ci flexo printing machine, web elongation and pitch distortion are completely arrested by locking the substrate against a single central impression drum. Rather than relying on theoretical friction models, OYANG guarantees color registration stability through measurable mechanical tolerances verified on Japanese MAZAK & OKUMA CNC lines:
| Critical Subsystem | Engineering Tolerance / Spec | Production Performance Impact |
|---|---|---|
| Central Impression Drum | ≤ 0.008 mm radial dynamic runout | Eliminates dot gain variations across all color stations during 250 m/min continuous runs. |
| Drum Thermal Stabilization | 22°C ± 0.5°C closed water circulation | Restricts film thermal expansion to < 0.02 mm across thin 20μm PE/BOPP, preventing inter-color misregister. |
| Ceramic Anilox & Chamber | 200–1,000 LPI laser engraved + closed blade | Maintains micro-metric ink film thickness; curtails volatile solvent evaporation and ink splashing. |
| Infeed Closed-Loop Tension | ≤ ±0.2 kgf low-inertia dancer control | Prevents web wrinkles and necking on lightweight spunbond nonwovens (30–100 g/m²) during acceleration. |
By wrapping the substrate past a > 270° arc on the chilled drum surface, relative slip between successive printing decks is mechanically impossible, providing absolute register locking without relying on continuous web stretching.
Select Your Ideal Flexographic Printing Configuration
Different mechanical layouts solve specific converting demands. Match your substrate stretch profile, production speed, and color requirements to the correct press layout.
YTB Series Stack Flexo Press
Economical roll-to-roll printing for paper rolls, woven fabric, heavy foils, and nonwovens. Independent impression rollers per color deck offer unmatched flexibility for double-sided web paths.
YTC Series CI Flexo Printing Machine
Heavy-duty central impression flexo press engineered for high-speed continuous production on extensible films, nonwovens, and paper rolls with zero web-wander.
FE Series Unit-Type Inline Flexo
Wide-web inline flexo printing line for coated board, kraft paper, and paper-plastic laminates. Supports inline die-cutting, drying tunnels, and carton pre-printing integration.
OYANG Flexo Printing Machine Product Range
Click any flexographic printing machine to view detailed engineering parameters, cylinder dimensions, and line drawings.
Roll-to-roll stack flexographic printing machine for paper, film, nonwoven, woven fabric, and foil rolls. Available in 2, 4, and 6 color stations with reversible web threading for reverse printing.
Dedicated 4-color stack flexo press optimized for kraft paper rolls and cardboard web feeding. Equipped with ceramic anilox rollers and infrared drying cassettes for rapid ink cure up to 100 m/min.
High-speed 4-color CI flexo printing machine engineered with a massive central impression drum. Completely eliminates color registration drift on extensible PE films and nonwovens at speeds up to 250 m/min.
6-color central impression flexo press designed for complex multi-tone photographic packaging graphics on paper, film, and foil. Features enclosed chamber doctor blades and servo positioning.
Heavy-duty inline flexographic printing press for coated board, kraft paper, linerboard, and nonwoven fabrics. Ideal for paper bags, corrugated box pre-printing, and courier bags up to 240 m/min.
Watch OYANG Flexo Printing Machines in Real Production
Observe continuous nonwoven fabric and paper web feeding across OYANG 4-color and 6-color CI and stack printing workflows.
Stack Flexo vs CI Flexo vs Unit-Type Inline Flexo
Comprehensive benchmark across substrate compatibility, speed ceilings, color registration tolerances, and converting objectives.
| Engineering Parameter | YTB Stack Flexo | YTC CI Flexo | FE Unit-Type Inline Flexo |
|---|---|---|---|
| Optimal Converting Target | Economical roll printing for standard packaging rolls | High-speed, distortion-free printing on extensible webs | Medium-to-wide paperboard and carton pre-printing |
| Substrate Compatibility | Kraft paper, PE, PP, nonwoven, woven PP, foil | BOPP, PET, PE, CPP, paper rolls, spunbond nonwoven | Coated paper, linerboard, cardboard, composite laminates |
| Available Color Decks | 2 / 4 / 6 Colors | 4 / 6 Colors | Custom Multi-Station Decks |
| Operational Line Speed | 50–100 m/min | YTC-41200: Up to 250 m/min YTC-61200: Up to 150 m/min | 200–240 m/min |
| Registration Precision | ±0.25 mm (Substrate dependent) | ≤ ±0.10 mm (Central drum locked) | ±0.15 mm (Servo synced) |
| Ink Delivery System | Fountain roller / Chamber doctor blade | Enclosed chamber doctor blade system | Ceramic anilox with chamber doctor blade |
| Target Packaging Products | Shopping bags, food sacks, agricultural woven sacks | High-barrier pouches, supermarket bags, soft-loop nonwoven bags | Corrugated shipping cartons, paper cups, courier bags |
| Machining Baseline | Precision laser-cut side plates | MAZAK CNC processed 130,000㎡ base framework | Heavy-duty nodular cast iron modular units |

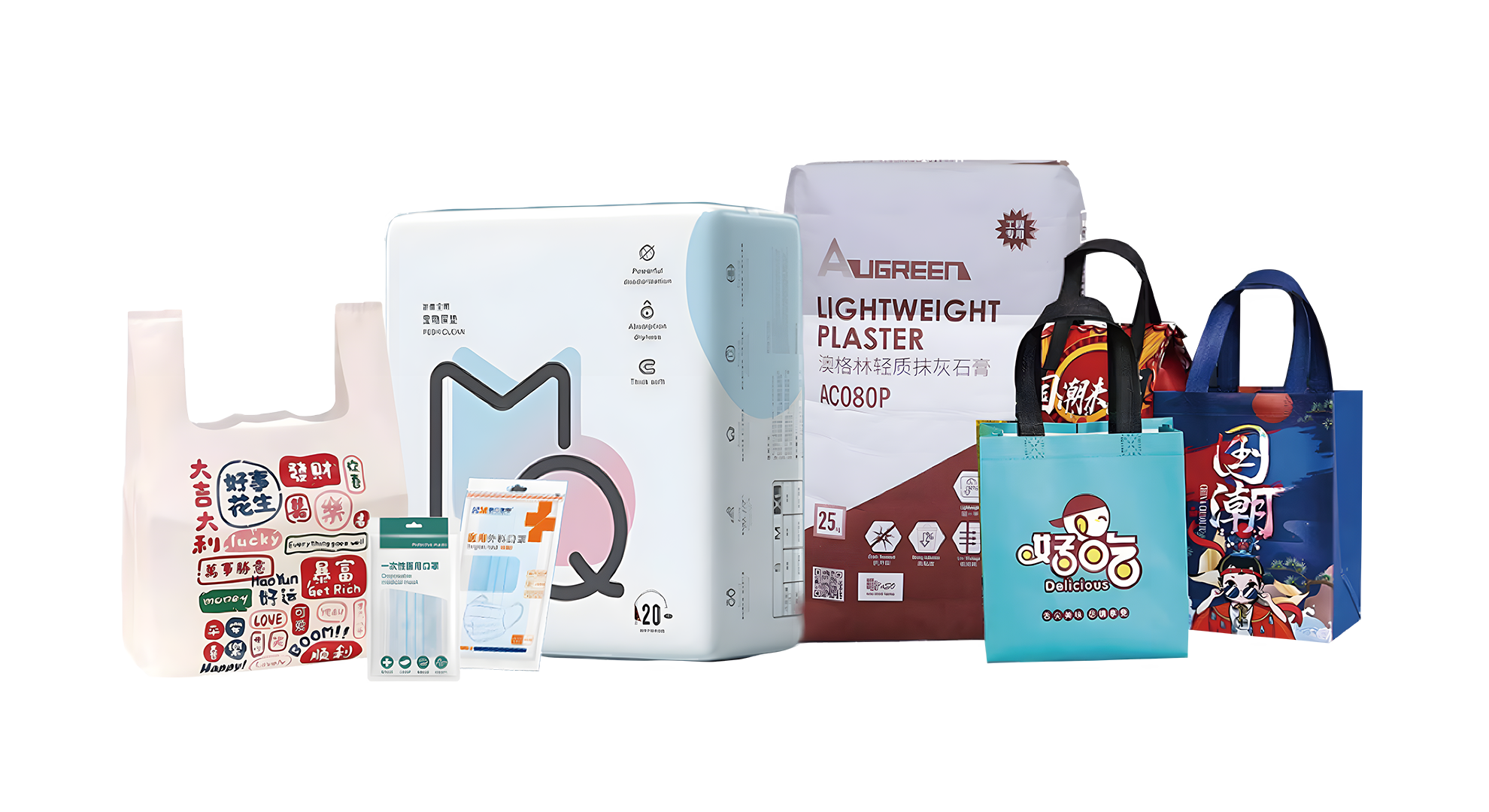

Flexo Printed Products for Paper, Film and Nonwoven Packaging
Flexographic printing is the critical inline pre-converting step before bag making, pouch forming, and carton gluing.

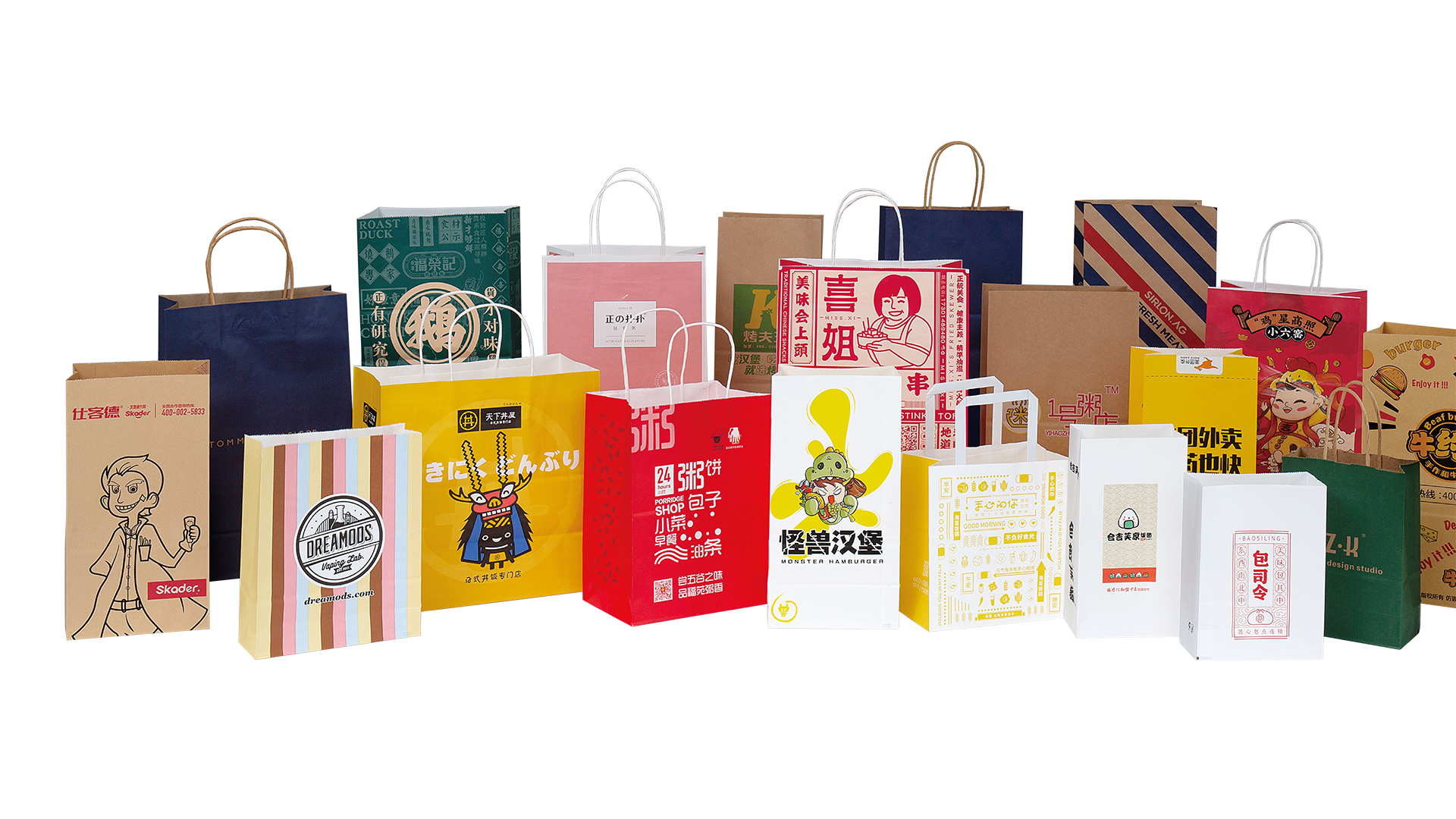

Kraft & White Paper Rolls
Optimized for kraft grocery bags, SOS bakery bags, retail gift sacks, single-wall food packaging, and linerboard for paper cup blanks.
Polymer & Barrier Films
Compatible with low-density PE, cast CPP, oriented BOPP, and co-extruded barrier substrates utilized in flexible pouches and heat-sealable retail overwraps.

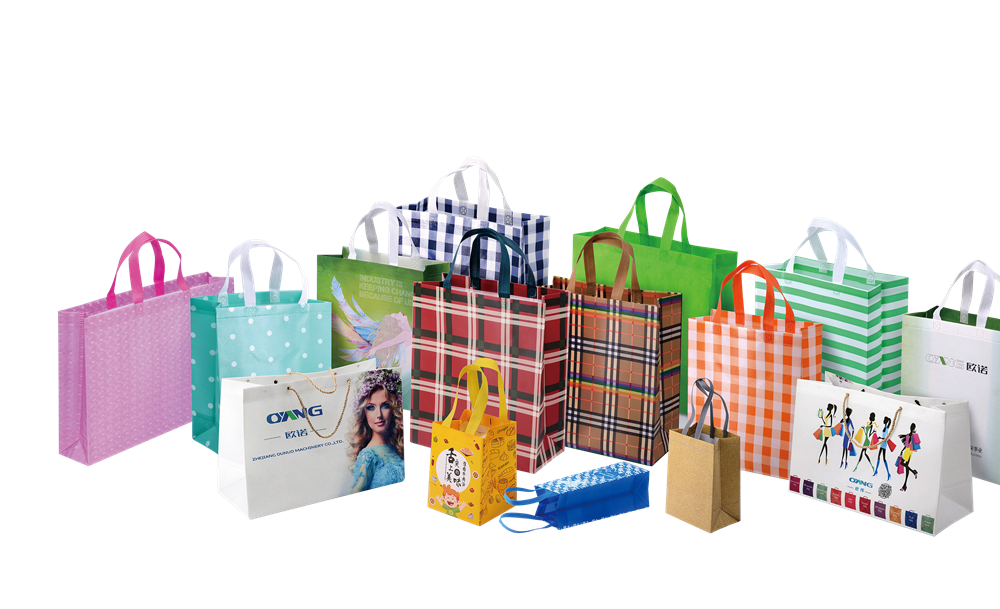

Spunbond Nonwoven Fabrics
High-opacity printing for reusable polypropylene nonwoven box bags, D-cut punch bags, loop handle sacks, and promotional garment suit carriers.
From Printed Web to Downstream Converting Automation
Frequently Asked Questions About Flexographic Printing Machines
Technical specifications, substrate limits, and configuration guidance for OYANG stack, CI, and inline flexo presses.
Q1: What materials can OYANG flexographic printing machines print?
Q2: Which flexo machine is suitable for paper bag printing?
Q3: Can one flexo printing machine print both paper and nonwoven fabric?
Q4: How many colors can OYANG flexo printing machines support?
Q5: What is the difference between stack flexo and CI flexo printing machine?
Q6: What is the difference between CI flexo and unit-type inline flexo?
Q7: What ink types can be used on flexo printing machines?
Q8: What products can be made after flexo printing?
Q9: Is flexo printing suitable for mass production?
Q10: Is the flexo printing machine difficult to operate?
Q11: What is the printing speed of OYANG flexographic printing machines?
Q12: Can flexo printing machines connect directly with bag making machines?
