Industrial Rotogravure Printing Machine & Gravure Line
Engineered to eliminate high-speed register drift and volatile solvent loss across multi-layer flexible packaging, OYANG's industrial rotogravure printing machine (high-speed gravure printing machine) lines deliver synchronized continuous roll converting up to 400 m/min. Utilizing dedicated Electronic Line Shaft (ELS) servo drives and heavy-duty 75mm nodular cast iron frames processed on Japanese MAZAK CNC centers, our presses maintain an automatic register tolerance of ≤±0.05mm across thin BOPP, PET, BOPA nylon, aluminum foil, and coated kraft paper, curtailing startup substrate waste to < 0.25%.
(Customizable)
OYANG Rotogravure Printing Machine Series
Every rotogravure printing machine in the OYANG portfolio is manufactured with high-tensile wall panels processed via MAZAK CNC centers, ensuring zero dynamic vibration at extreme speeds.
EASYPRINT 3.0 ELS Gravure Machine
Cost-effective entry-level gravure printing machine. Ideal for sampling, short runs and converters expanding into flexible film printing.
HONOR 3.5 ELS Gravure Machine
Balanced performance for mid-scale converters. Built with Kersai ELS 3.0 control, supporting wide web film processing up to 1,350mm.
HONOR 3.5 PLUS ELS Gravure Machine
Upgraded 75mm nodular iron frame, fully enclosed ink trough, and B&R ELS integration — bridges high-speed stability and economical operation.
HONOR 4.0 ELS Rotogravure Machine

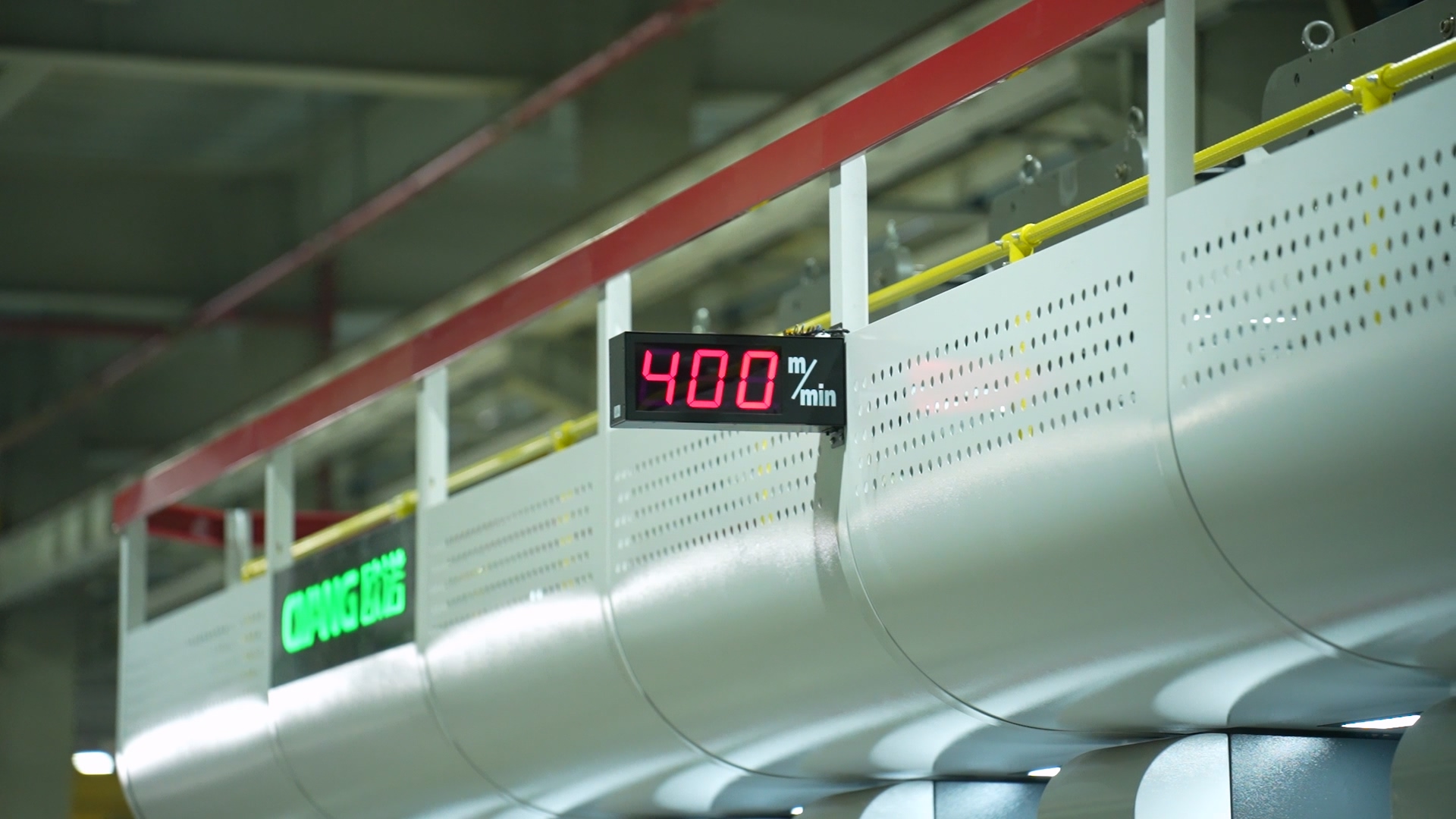

The flagship high-volume rotogravure printing machine. Features 400 m/min stable speed, B&R ELS motion architecture, and 3,000-recipe digital memory.
Comparative Analysis: OYANG Gravure Printing Machine Range
Detailed engineering benchmark comparing speed, frame rigidity, doctor blade structures, and drying efficiencies across all 4 ELS configurations.
| Parameter | EASYPRINT 3.0 Entry Level | HONOR 3.5 Mid Range | HONOR 3.5 PLUS ★ Popular | HONOR 4.0 Flagship |
|---|---|---|---|---|
| Max Speed | 280 m/min | 320 m/min | 380 m/min | 450 m/min |
| Production Speed | 220 m/min | 300 m/min | 350 m/min | 400 m/min |
| Max Print Width | 1,250mm | 1,350mm | 1,350mm | 1,350mm |
| Colors | 5–11 | 5–11 | 5–12 | 5–14 |
| Register Accuracy | ≤±0.05mm | ≤±0.05mm | ≤±0.05mm | ≤±0.05mm |
| Lower Side Frame | 50mm Cast Iron | 50mm Cast Iron | 75mm Nodular Iron | 75mm Nodular Iron |
| Upper Side Frame | 20mm Steel Plate | 20mm Steel Plate | 40mm Nodular Iron | 40mm Nodular Iron |
| Ink Trough | Semi-Covered | Semi-Enclosed | Fully Enclosed | Fully Enclosed |
| Doctor Blade | Dual-Shaft Pneumatic | Dual-Shaft Pneumatic | Box-Type Rigid | Box-Type Rigid |
| Impression Device | Swing Arm Φ63mm | Swing Arm Φ63mm | Direct Press Φ80mm | Direct Press Φ80mm |
| Control System | KESAI ELS | KESAI ELS 3.0 | B&R or KESAI 3.5 | B&R or KESAI 4.0 |
| Printing Unit Motor | 3.6kW Direct Servo | 3.6kW Direct Servo | 5.6kW Servo+Gearbox | 5.6kW Servo+Gearbox |
| Standard Oven Length | 1,600mm | 1,500mm | 1,800mm | 1,800mm |
| Energy Saving System | ✓ | ✓ | 35–40% | ✓ 55–60% |
| Pre-Registration | ✓ | ✓ | ✓ | ✓ |
| Job Memory (Recipes) | Standard | Standard | Standard | 3,000 Recipes |
| Main HMI | 15" Touchscreen | 15" Touchscreen | 19" Touchscreen | 19" Touchscreen |
| CE Certified | ✓ | ✓ | ✓ | ✓ |
| Best For | Sampling & short runs | Mid-scale converters | Growing converters | High-volume production |
| View Details | Details → | Details → | Details → | Details → |
5 Key Advantages Across the OYANG Gravure Series
How precision Japanese machining and thermodynamically optimized drying eliminate register drift and solvent waste.
Mechanical Rigidity & Dynamic Resonance Control Standards
At line speeds reaching 400 m/min, rotational inertia and cylinder impression forces risk harmonic micro-vibrations in lightweight fabricated frames. OYANG eliminates dynamic register drift through structural rigidity standards verified across in-house Japanese MAZAK & OKUMA CNC lines:
| Structural / Dynamic Subsystem | Engineering Tolerance & Material | High-Speed Performance Guarantee |
|---|---|---|
| Wall Panel Casting | 75mm QT500-7 Nodular Cast Iron | High internal damping capacity absorbs operational vibrations, shifting resonance frequencies far above the 450 m/min zone. |
| MAZAK CNC Panel Planarity | ≤ 0.015 mm overall flatness | Precision-bored shaft centers guarantee parallel cylinder contact across 1,350mm web widths, preventing uneven nip pressure. |
| Dynamic Register Locking | ≤ ±0.05 mm (longitudinal & lateral) | Integrated B&R / Kersai ELS bus automatically compensates cylinder phase angles within 10 milliseconds during roll splicing. |
| Tension Closed-Loop Stability | ≤ ±0.3 kgf dynamic deviation | Low-inertia floating dancer rollers compensate web elongation across thin 12μm PET and 15μm BOPA barrier films. |
By combining stress-relief thermal annealing with box-type rib reinforced wall frames, the press maintains absolute mechanical alignment across 24-hour continuous converting cycles, eliminating color ghosting, doctor blade chatter, and cylinder deflection.
Tower Dual-Station — Non-Stop Roll Change at Full Speed
All models feature a tower-type dual-station unwind and rewind structure. When a roll reaches its terminal diameter, the servo-driven turret arm rotates and automatically splices the web at full operating speed (up to 400 m/min). This eliminates line deceleration, avoids registration shifts during changeovers, and delivers uninterrupted output across 24-hour manufacturing shifts.

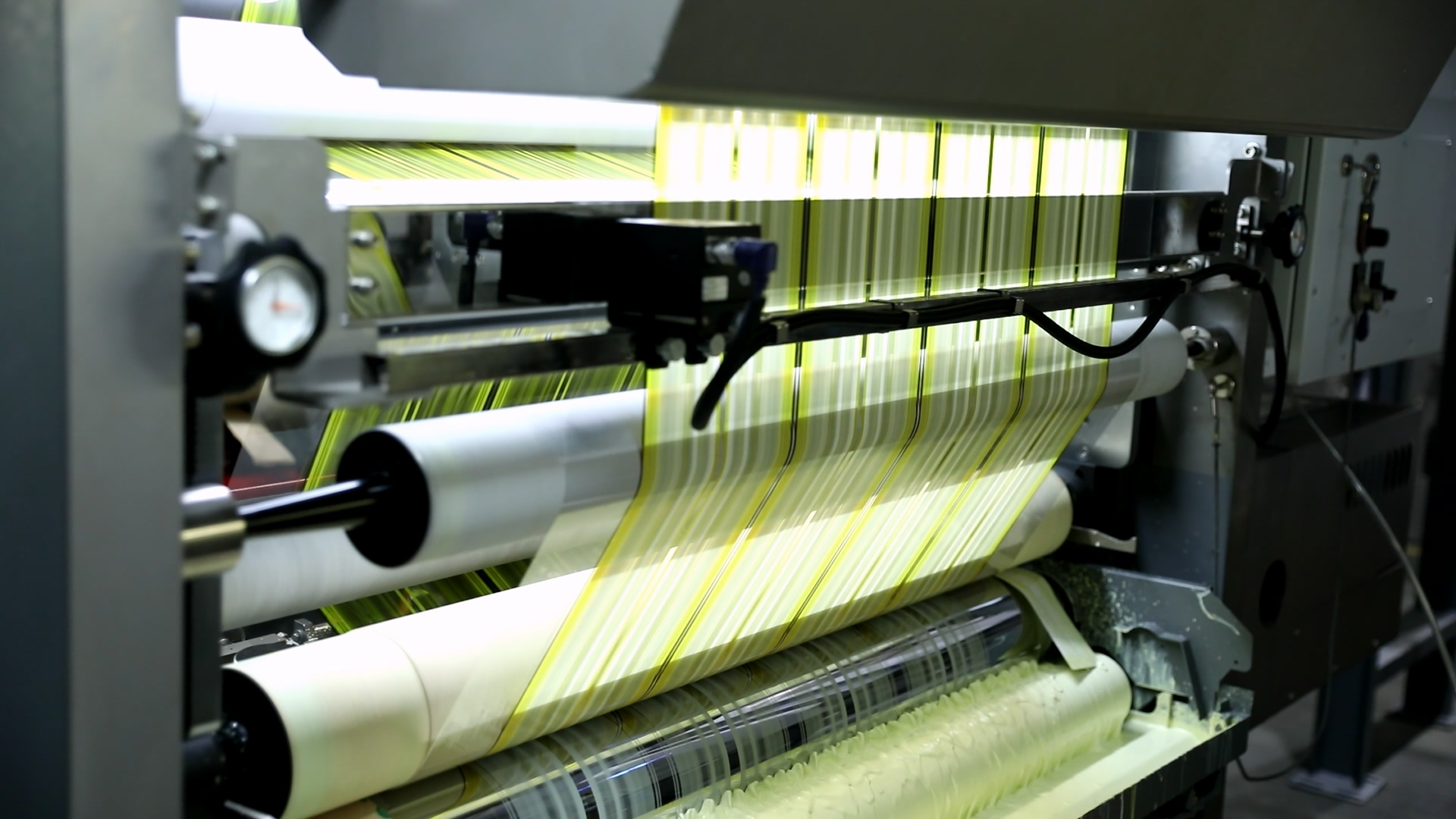

≤±0.05mm Register Accuracy — Closed-Loop Dynamic Tension
A low-friction ultra-light dancer roller coupled with high-resolution magnetic powder brake and dual servo infeed units provides continuous real-time tension compensation (≤±0.3 kgf). The high-speed fiber-optic pre-registration system locks colors in a single pass during ramp-up, minimizing substrate waste during machine startup.

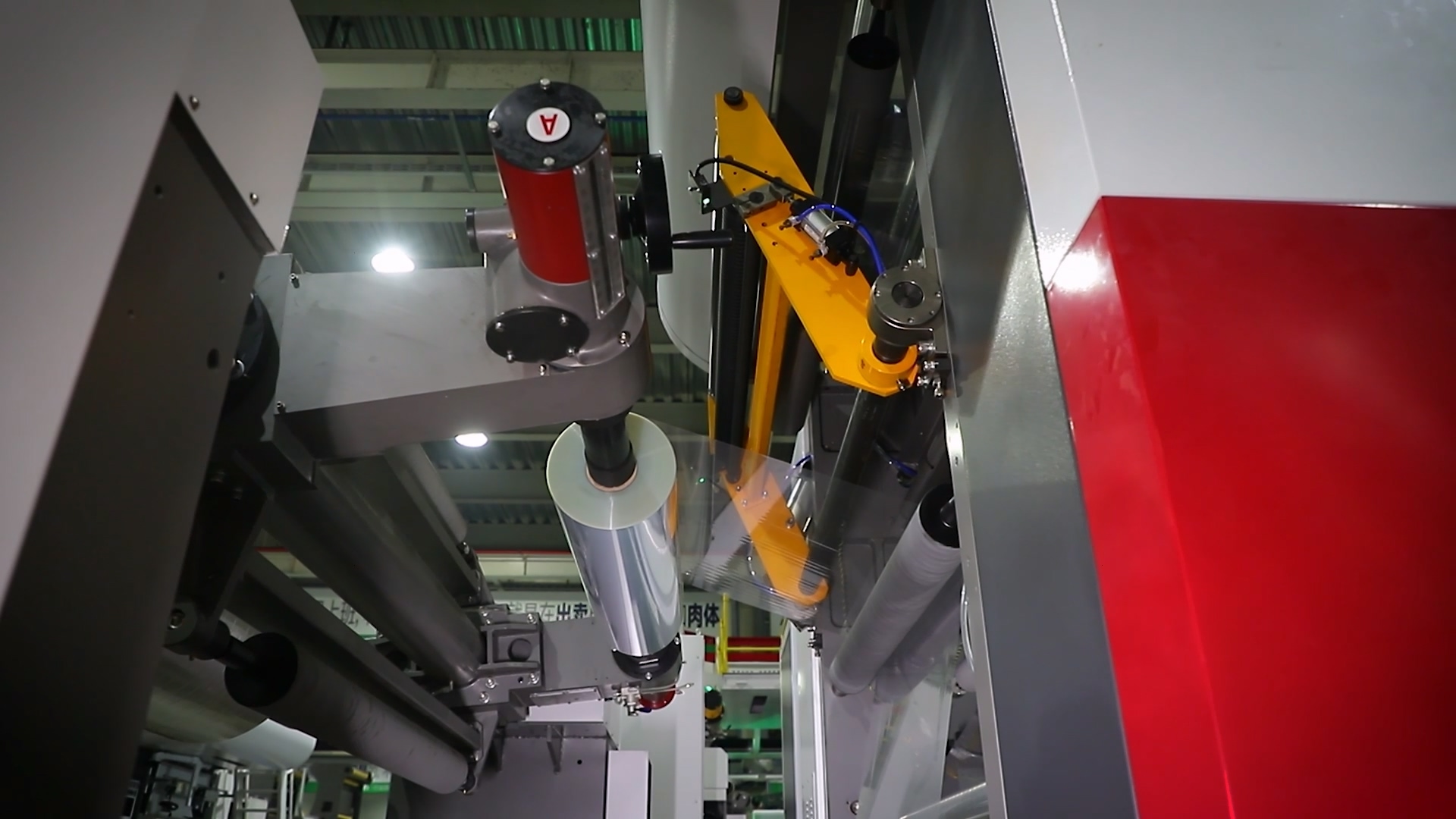

ELS Electronic Shaft — One-Key Setup & 3,000-Recipe Storage
By replacing mechanical drive shafts with Austrian B&R or Kersai servo motion controllers, each print cylinder operates as an independent virtual electronic axis. The system synchronizes phase angles via high-speed Ethernet POWERLINK bus. Operators can recall tension curves, oven temperatures, and register offsets for up to 3,000 repeat orders in under 2 minutes.

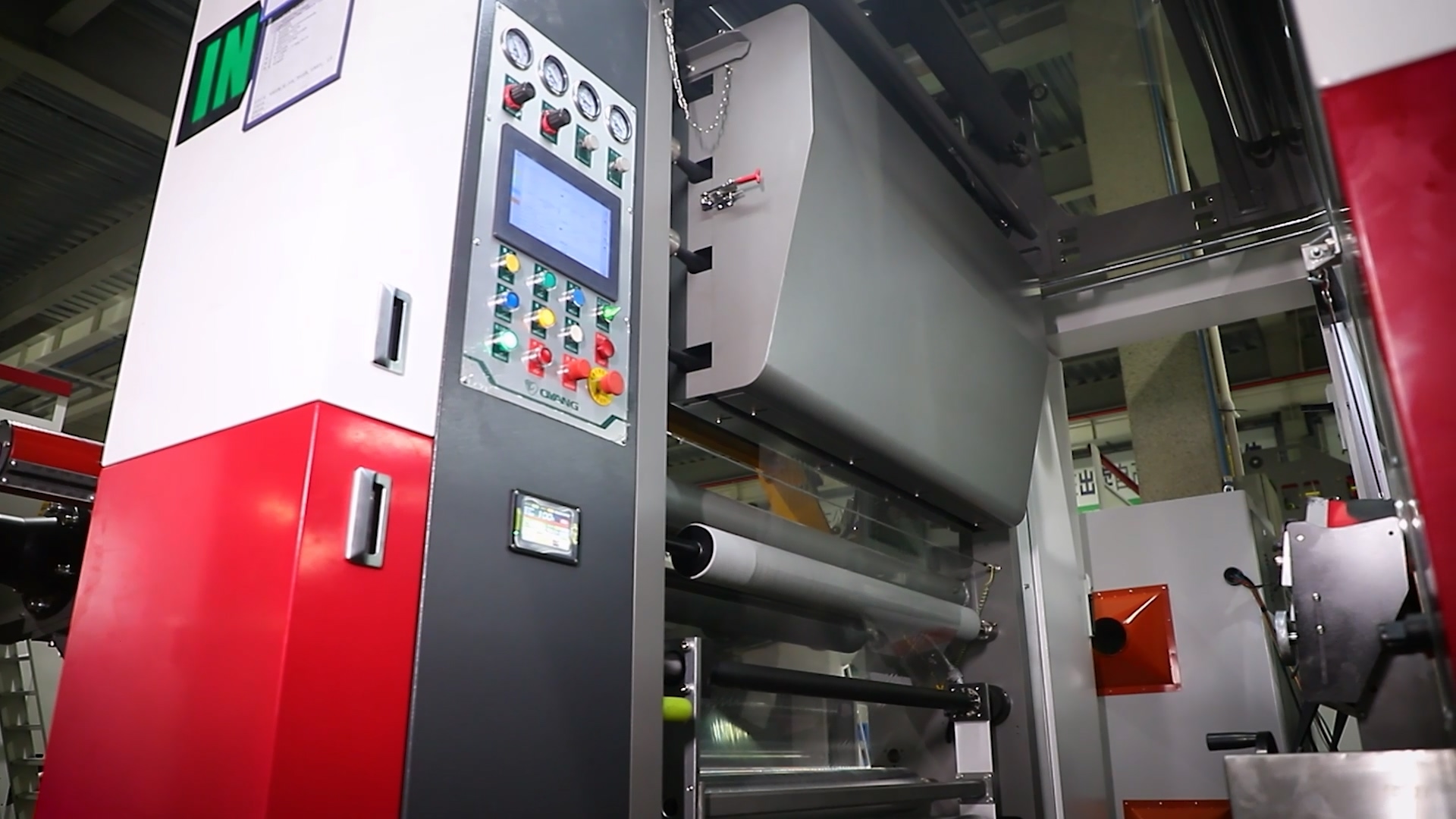

Fully Enclosed Ink Trough — Solvent Loss Reduction
HONOR 3.5 PLUS and HONOR 4.0 feature a Teflon-coated, aerodynamically sealed ink system. By preventing ambient air induction across the ink surface, volatile organic solvent evaporation is curtailed by over 30%, saving up to ¥600,000 annually per line. The rigid box-type doctor blade features 3D micro-adjustment to prevent ink spitting and blade chatter marks.

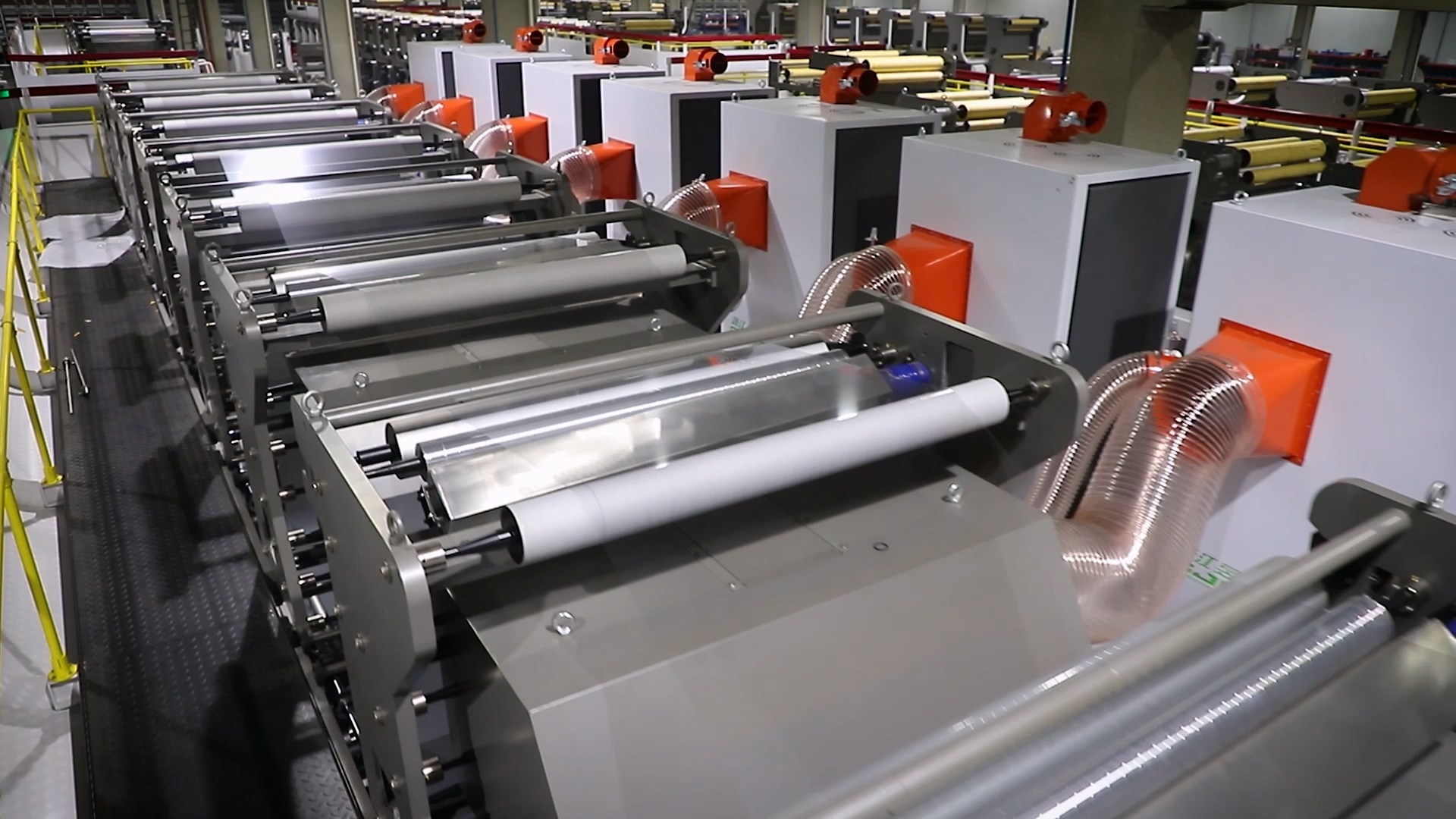

Thermodynamic Drying Efficiency & Heat Recovery
Featuring variable-frequency air recirculation with nozzle jet velocities exceeding 40 m/s, OYANG ovens generate high boundary-layer turbulence to evaporate solvents with minimal substrate heating. Five-sided rock wool thermal insulation limits exterior shell temperatures to below 40°C, reducing electrical consumption by 15–20% compared to conventional air impingement systems.
8-Step Rotogravure Printing Process
How roll-fed substrates pass through the intaglio printing units to achieve precision packaging films.

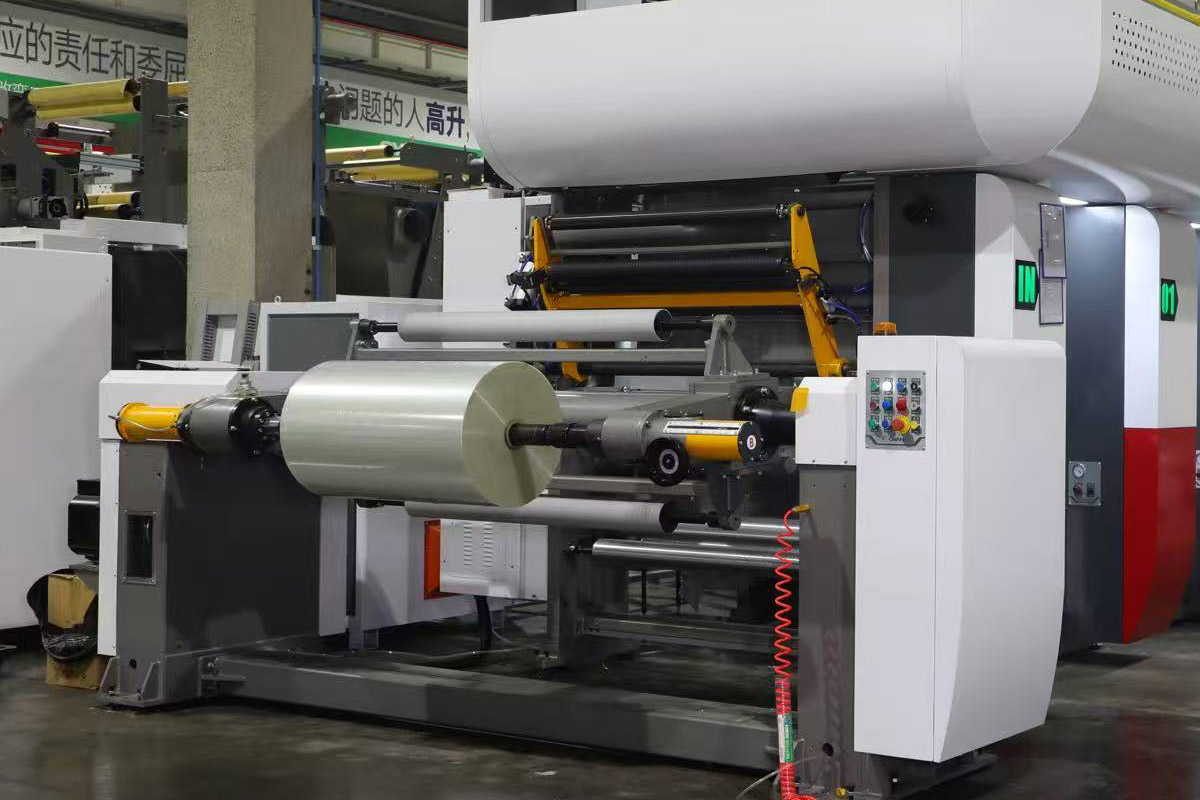

Dual-position turret with flying splice mechanism changes full-speed rolls up to 400 m/min without tension disruption.

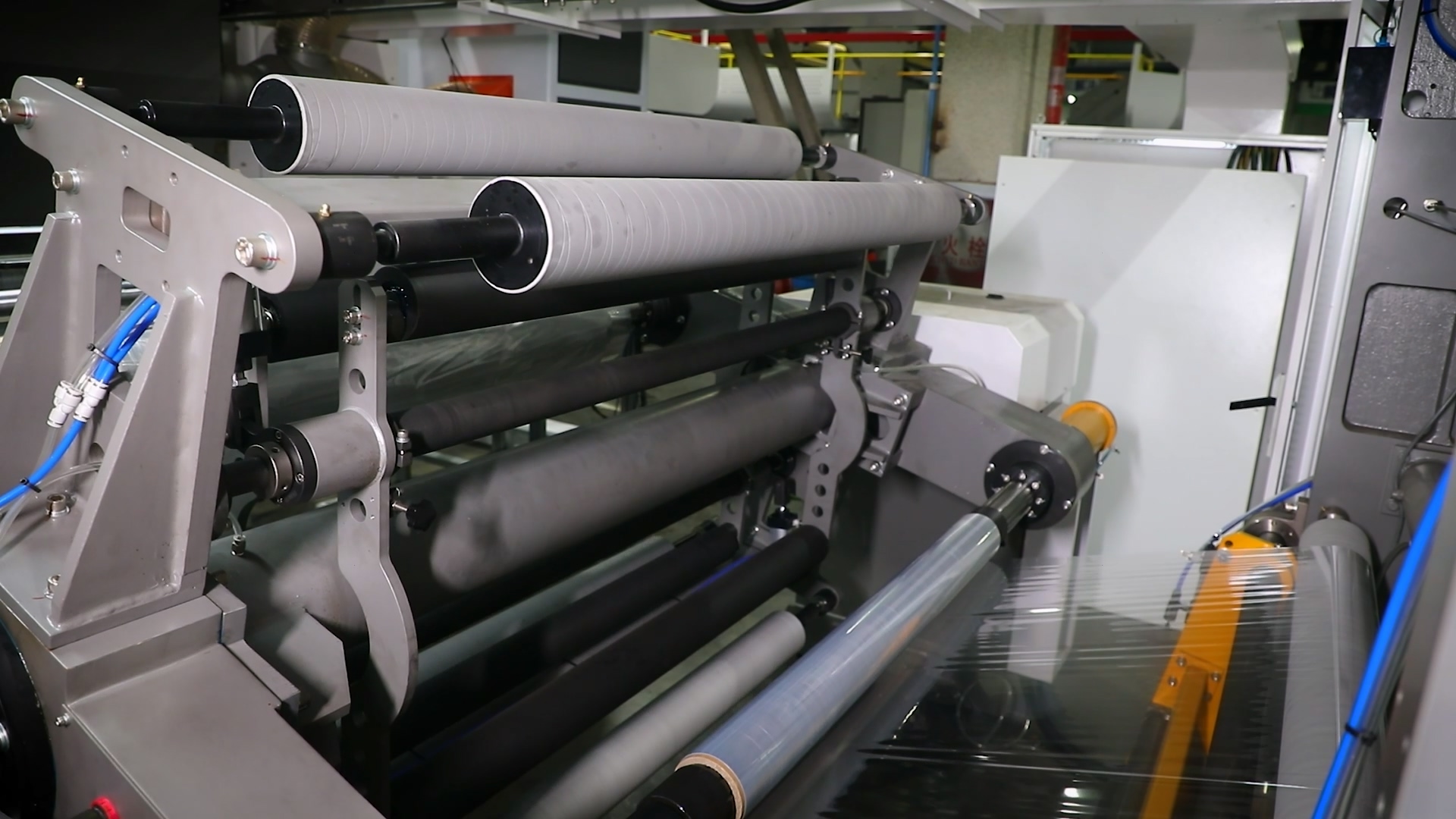

Ultra-sensitive floating dancer roller actively compensates web expansion, providing stable ±0.3 kgf infeed tension.

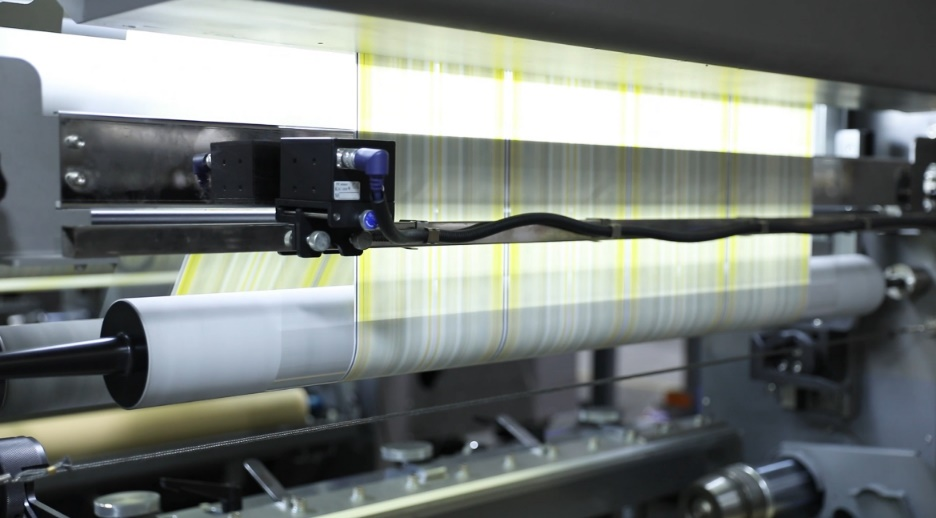

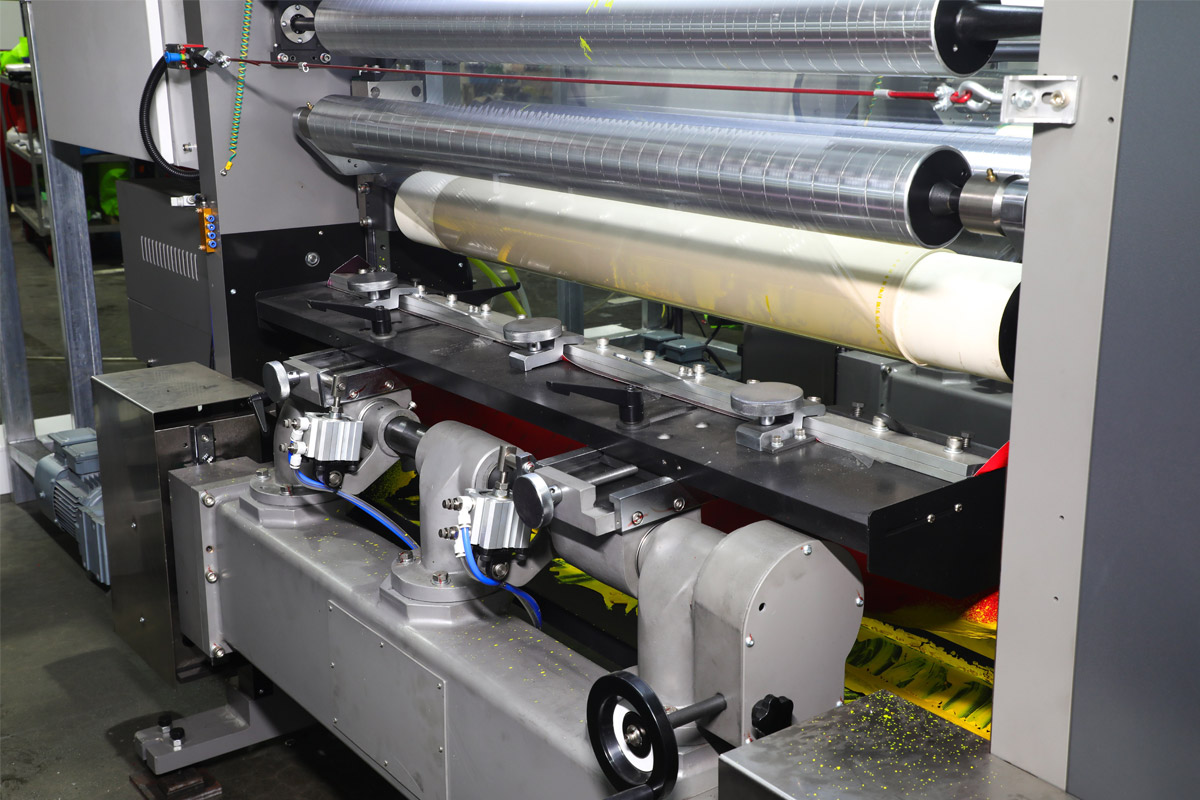

Independent servo motors drive the engraved cylinder, applying micro-dosed inks directly with ≤±0.05mm register accuracy.

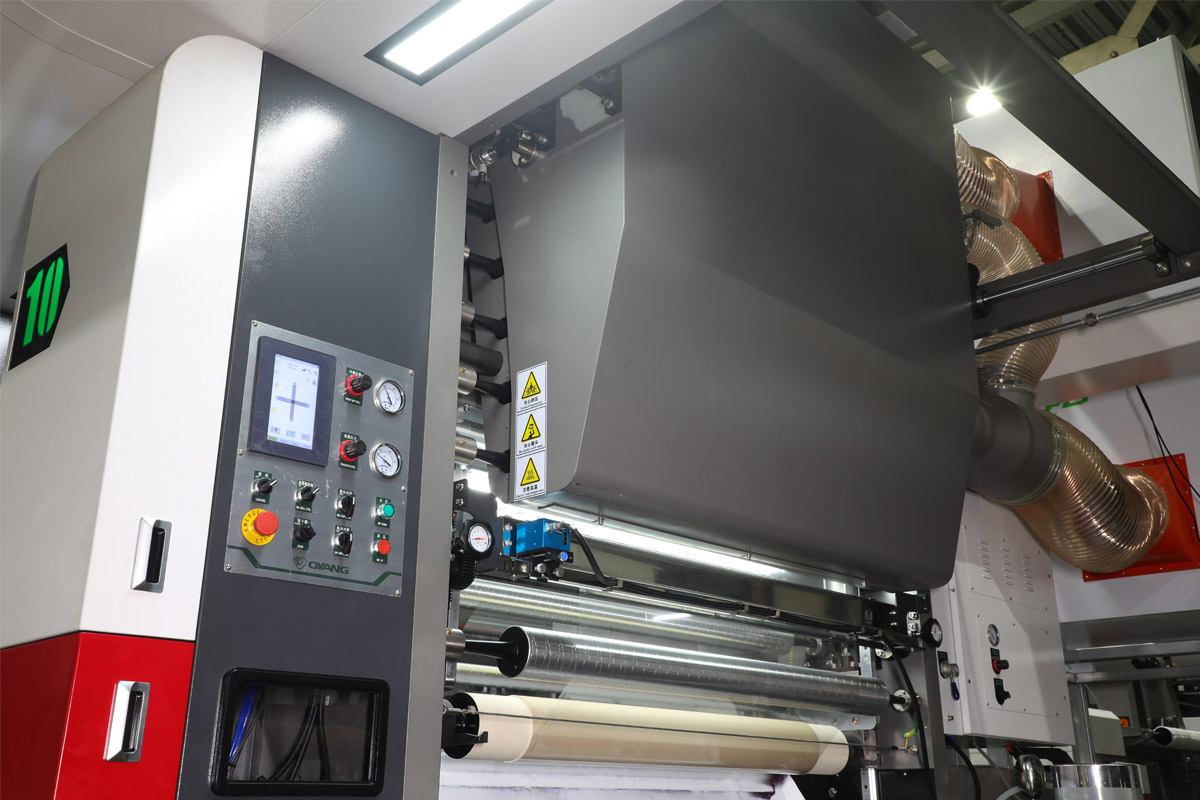

Nozzle velocity exceeding 40 m/s accelerates solvent release, ensuring complete drying with residual solvents below EU food packaging thresholds.

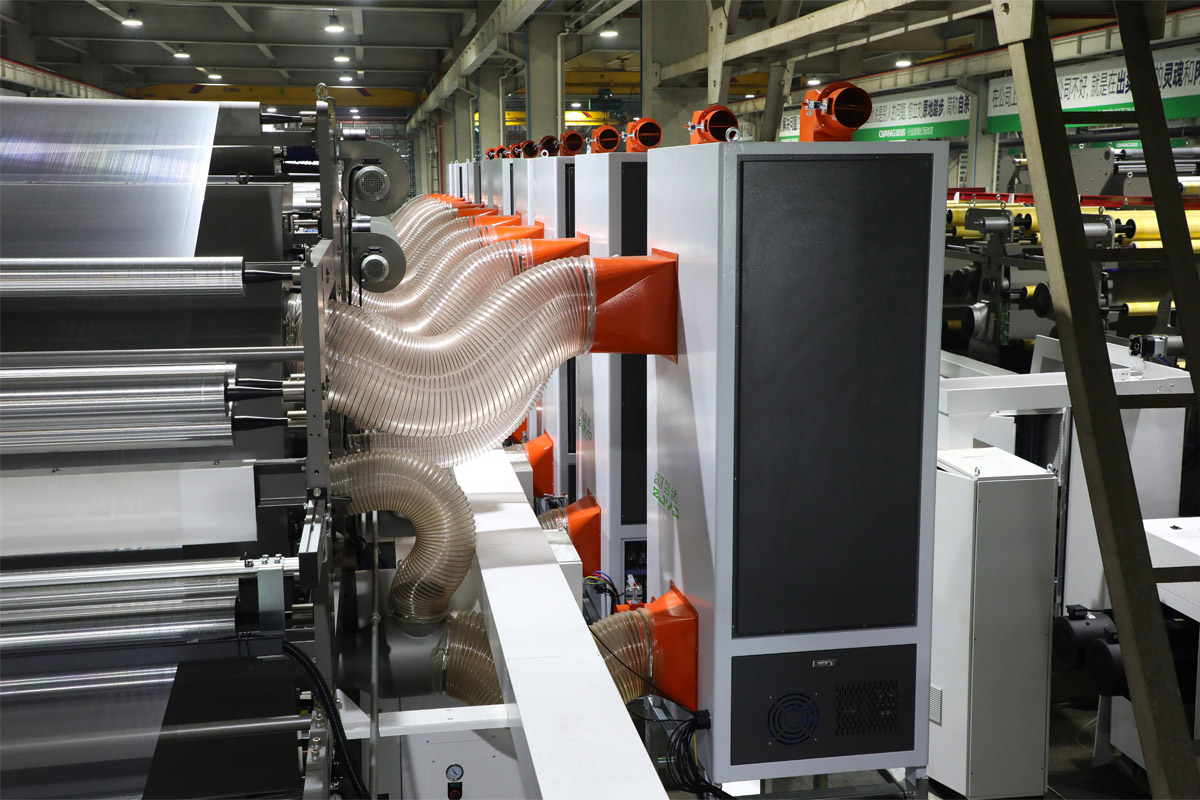

Internal spiral-flow water-cooled rollers (Φ150mm) rapidly cool films back to ambient temperatures to prevent post-print stretching.

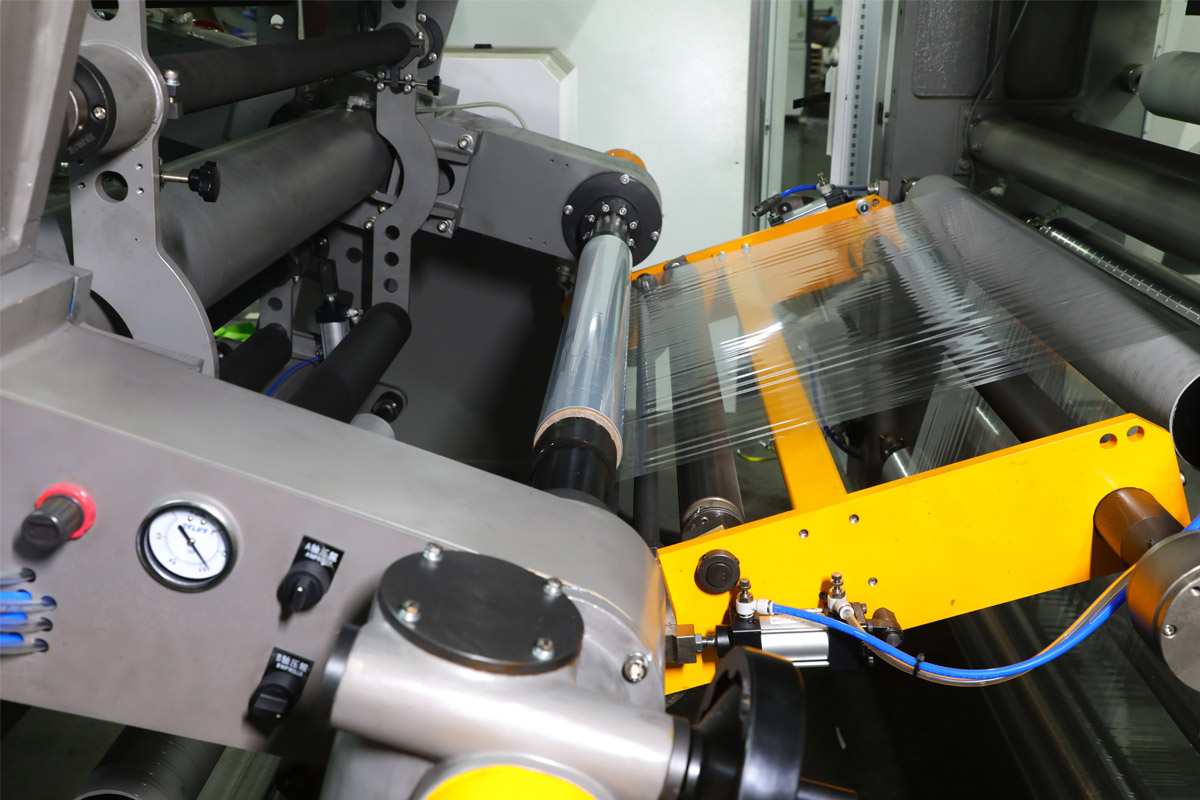

Servo-controlled taper tension algorithm dynamically matches increasing roll diameter, eliminating telescoping rolls.

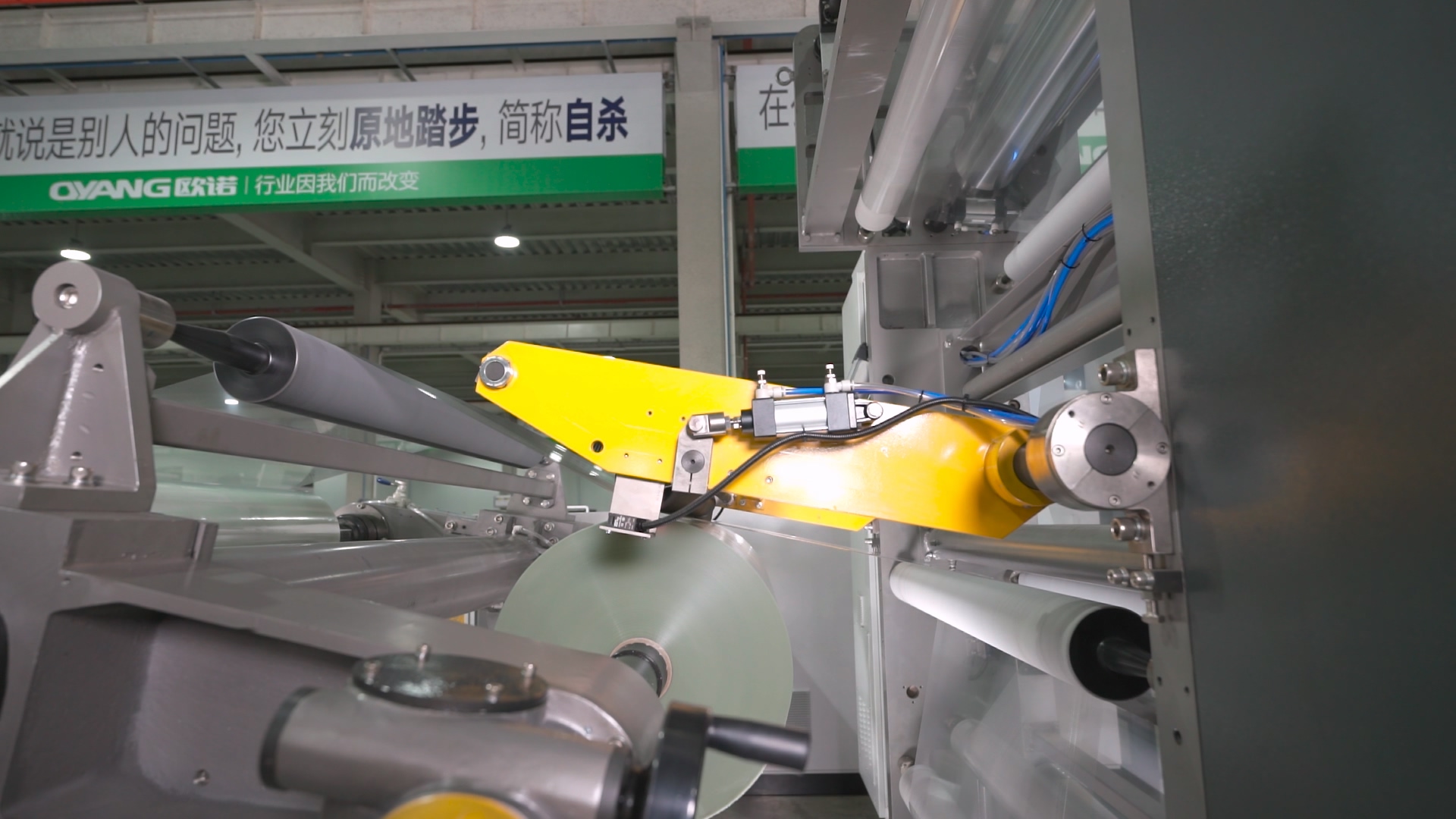

Linear cutter and pre-drive roll rotation execute non-stop automatic core switching when the target length is completed.
High-density printed rolls transfer straight to OYANG solvent-free laminators and pouch making machines with zero edge-trim waste.
Compatible Materials & Converting Sectors
Engineering compatibility verified for films, foils, and composite papers across primary food and industrial packaging sectors.
01Crisp snack bags, confectionery wrappers, and twist films requiring high optical clarity.
02Retort pouches, pet food bags, and vacuum-grade barrier packaging.
03Heat-sealable inner liners, facial sheet mask packaging, and medical pouches.
04High puncture-resistant vacuum barrier wraps for frozen meat, poultry, and liquid packaging.
05Ultra-high barrier pharmaceutical blister lids, coffee pouches, and retort laminates.
06Reflective premium snack packaging, coffee pouches, and thermal insulation rolls.
07Eco-friendly retail shopping bags, flour bags, and flexible composite paper wraps.
08High-shrink ratio beverage sleeve labels, bottle tamper bands, and cosmetic wraps.
Watch OYANG Rotogravure Machines in Operation
Live engineering walkthroughs and high-speed factory demonstrations presented by OYANG group engineers.
Rotogravure Printing Machine — Full Introduction
Complete machine walkthrough by Roman — mechanical frame, ELS servo drive, and drying nozzles.
Rotogravure Machine Overall Introduction
Detailed review by Zory — servo synchronization bus, dancer tension, and cylinder clamping units.
HONOR 4.0 ELS Rotogravure Machine Introduction
Technical inspection by Zory — 400 m/min speed demonstration, B&R ELS platform, and 3,000 recipe management.
HONOR 3.5 Full Machine Working Demo
Continuous production on BOPP film — 300 m/min speed run with real-time automatic color register accuracy.
EASYPRINT 3.0 Machine Introduction
Cost-effective ELS setup — 220 m/min production, one-key auto pre-registration, designed for new converters.
OYANG Rotogravure Printing Machine — Frequently Asked Questions
Verified answers covering models, mechanical tolerances, register accuracy, substrate limits, and global warranty terms.
Q1: What rotogravure printing machine models does OYANG offer?
Q2: What is the maximum printing speed of each model?
Q3: How many print colors can be configured?
Q4: What print widths are available?
Q5: What register accuracy can I expect?
Q6: What substrates are compatible?
Q7: Can the machine run without stopping during roll changes?
Q8: What control system is used?
Q9: How does the drying system work, and is it energy-efficient?
Q10: How operator-friendly are these machines?
Q11: What is the frame and structural build quality?
Q12: Are these machines CE certified?
Q13: What is the standard delivery time?
Q14: Can the machine handle both film and paper substrates?
Q15: What after-sales service is provided?
Get a Customised OYANG ELS Rotogravure Press Quote Today
Share your target substrate, required print width, color count, line speed, and annual output target. Our engineering team will return a detailed machine topology and formal quote within 24 hours.
Contact OYANG Rotogravure Press Team
Submit your substrate specifications, print widths, and speed requirements. Our machine application specialists will calculate complete line configurations within 24 hours.
