An automatic high-speed ELS rotogravure printing machine utilizes an Electronic Line Shaft topology where each color station is driven directly by dedicated AC synchronous permanent magnet servo motors, completely eliminating mechanical transmission shafts, bevel gearboxes, and backlash. Integrated with pneumatic shaftless cylinder chucking and automatic dual-axis turret splicing at line speeds up to 400 m/min, a fully automatic rotogravure printing machine achieves dynamic longitudinal and transverse register precision within ±0.05 mm while reducing substrate setup waste to under 30 meters per job change.
The Engineering Shift: Mechanical Drive Limitations vs. ELS Servo Architecture
In conventional gravure presses, mechanical line shafts run along the machine bed to mechanically tie all print decks together. While mechanically simple, this design introduces critical mechanical bottlenecks that cripple productivity in modern high-mix flexible packaging plants:
- Torsional Deflection & Dynamic Backlash: Long steel line shafts twist under high torque loads. During line acceleration from 0 to 300 m/min, this torsional spring effect causes color decks to lag, resulting in 150 to 300 meters of misregistered scrap film before stable tension is achieved.
- Thermal Expansion Phase Shift: Operating at industrial speeds generates frictional heat across bevel gears and differential boxes. Thermal expansion alters mechanical gear tooth pitch, inducing register drift that requires continuous manual compensator intervention.
- Mechanical Wear & Gear Backlash: As mechanical gear teeth wear over millions of rotational cycles, backlash accumulates. This manifests as color hunting (register jitter > ±0.15 mm) that cannot be corrected by software algorithms without physical rebuilds.
An ELS rotogravure printing machine replaces the mechanical spine with a high-speed real-time industrial Ethernet motion bus (such as EtherCAT or PROFINET IRT). Each print station operates as an independent direct-drive mechatronic axis, dynamically compensating for web elongation variations in microsecond response cycles.
Shaftless Cylinder Chucking: Mechanics and Ergonomic Operation
A defining characteristic of an automatic gravure printing machine is the hollow-core shaftless cylinder clamping system. Traditional heavy mandrel shafts require crane hoisting, mechanical collar tightening, and high labor overhead, taking 20 to 35 minutes per station during job changeovers.
In a modern shaftless rotogravure printing machine:
- Dual-Sided Pneumatic/Hydraulic Chucks: Precision cone chucks mounted on hardened linear guide bushings clamp directly into the tapered bore ends of the hollow printing cylinder.
- Automatic Pre-Registration Positioning: An absolute multi-turn rotary encoder on the direct-drive servo spindle indexes the cylinder to the programmed 0-degree mechanical datum automatically upon clamping.
- Rapid Trolley Docking: Integral ink fountain and cylinder assembly trolleys roll smoothly into the unit frame on ground-mounted tracks, reducing color-deck changeover times to under 3 minutes per unit with single-operator execution.
Full-Speed Non-Stop Splicing: Zero-Deceleration Turret Mechanics
Halting a printing line to change web rolls destroys thermal equilibrium in the drying hoods, causes substrate sagging, and ruins register alignment across all units. A high speed rotogravure printing machine deploys continuous dual-arm turret unwinding and rewinding systems engineered for non-stop flying splices at full production velocities up to 400 m/min.
| Sub-System / Mechanism | Engineering Configuration | Performance Benchmark | Production Advantage |
|---|---|---|---|
| Turret Unwind Flying Splicer | Dual-arm disc indexing with automatic roll diameter calculation via laser sensors | Zero line-speed reduction at 400 m/min | Eliminates thermal shock in drying ovens; keeps tension variation within ±2 N. |
| Shaftless Chucking Mechanism | Heavy-duty pneumatic/hydraulic clamping cones with safety interlock pins | Clamp force ≥ 25 kN; runout ≤ 0.010 mm | Allows toolless cylinder loading in ≤ 3 minutes; reduces operator physical strain. |
| Optical Video Inspection & Pre-Register | High-frequency matrix CCD cameras with digital stroboscopic flash lighting | Register error detection resolution: 0.01 mm | Pre-positions plate cylinders to stored recipe coordinates, trimming start waste to ≤ 30 m. |
| Closed-Loop Dancer Arm Units | Low-friction air-bearing cylinders with precision angular displacement sensors | Tension fluctuation ≤ ± 1.5% across ramps | Prevents web wrinkling, necking, and register hunting on thin 12μm PET and 20μm BOPP. |
| Direct-Drive ELS Spindles | High-torque AC synchronous permanent magnet direct-drive servo motors | Dynamic register accuracy ≤ ± 0.05 mm | Zero mechanical transmission backlash; instantaneous phase advance and retard response. |
OYANG HONOR Series: Precision Heavy-Duty CNC Manufacturing Foundation
An advanced ELS servo loop is only as effective as the physical machine base supporting it. At continuous line speeds of 400 m/min, micro-vibrations across structural walls induce doctor blade hydroplaning, cylinder chatter marks, and register hunting.
Inside OYANG’s 130,000 m² production complex, the structural wall panels, bearing saddle supports, and precision doctor blade sliding bases for the HONOR 4.0 ELS Rotogravure Printing Machine and HONOR 3.5 PLUS ELS Rotogravure Printing Machine are processed exclusively on Japanese MAZAK and OKUMA 5-axis CNC machining centers.

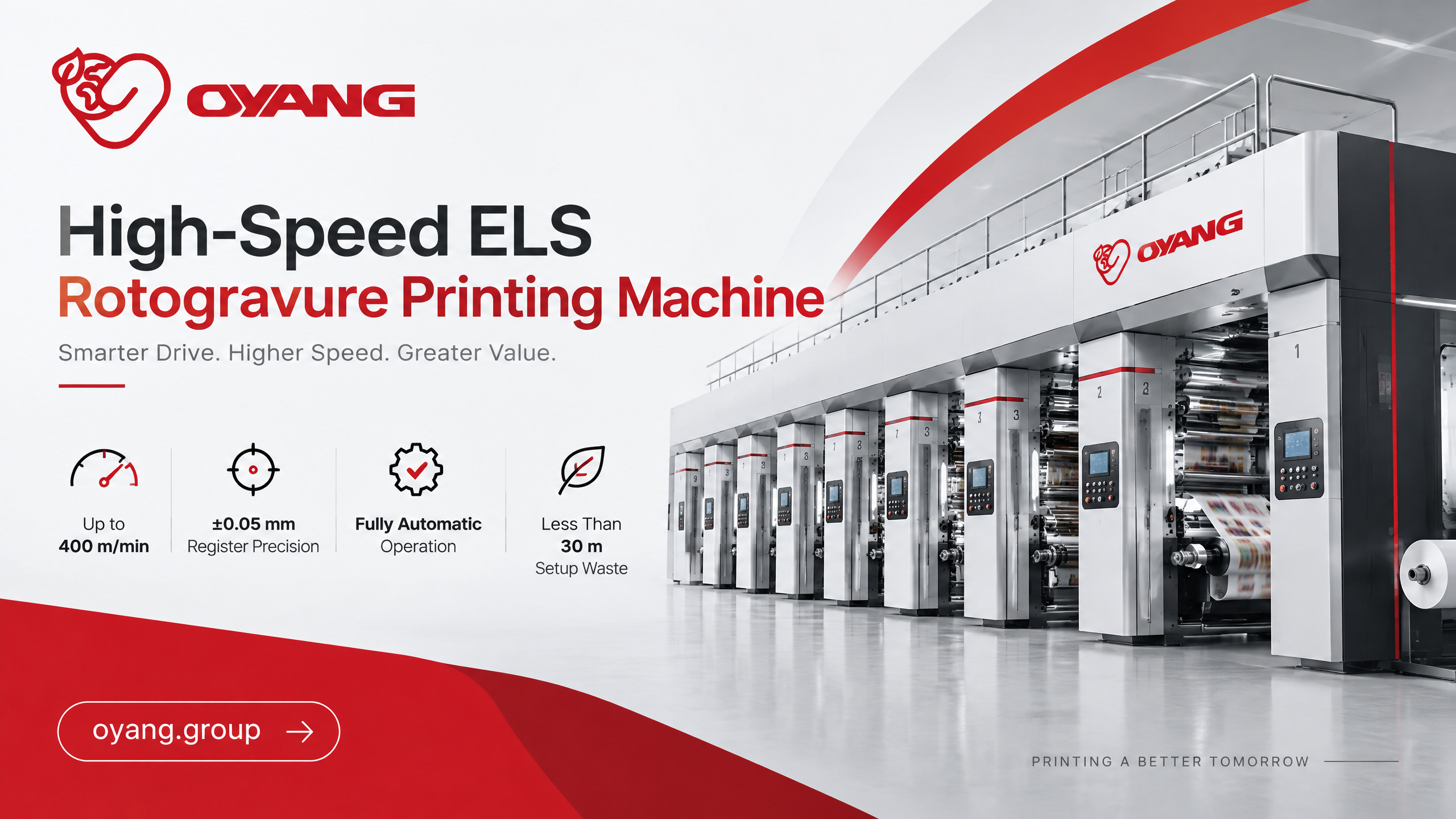

Figure 1: OYANG HONOR 4.0 ELS Rotogravure Printing Machine featuring electronic line shaft direct-drive technology, shaftless cylinder chucking, and continuous 400 m/min operating speeds.
By executing all boring, milling, and planar operations in a single CNC setup, structural datum tolerances are held strictly to ≤ 0.015 mm. This structural rigidity ensures that the electronic servo synchronization holds longitudinal and transverse registration strictly within ±0.05 mm across both steady-state runs and emergency ramps.
For end-to-end pouch packaging workflows, high-speed printed rolls integrate directly into our downstream converting equipment—such as the OYANG 650SZL Stand-Up Zipper Pouch Making Machine—delivering exceptional overall line efficiency with minimal film scrap.
Related Technical Guides & Converting Resources
- → What is Rotogravure Printing and How It Works? Core Principle Guide: Review the fluid dynamic transfer cycle, doctor blade shearing mechanics, and drying physics.
- → Rotogravure vs. Flexo: 4 Printing Types Compared: An engineering comparison of tooling costs, dot reproduction limits, and production profitability break-evens.
- → Disadvantages of Rotogravure: 5 Bottlenecks & Solutions: In-depth analysis of cylinder tooling lead times and how ELS automation mitigates traditional changeover waste.
- → Rotogravure Cylinders: Process & Maker Guide: Technical breakdown of copper plating, electromechanical engraving cells, and hard chrome surface tolerances.
Frequently Asked Questions (FAQ)
What is an ELS rotogravure printing machine?
An ELS (Electronic Line Shaft) rotogravure printing machine is a press where individual AC synchronous servo motors independently drive each print unit cylinder via high-speed motion bus communication, eliminating mechanical driveshafts, backlash, and mechanical gear wear.
How does shaftless cylinder chucking improve machine productivity?
Shaftless cylinder chucking utilizes dual pneumatic or hydraulic cones to clamp hollow cylinders directly into the press frame, allowing single-operator cylinder changeovers in under 3 minutes per unit and eliminating cumbersome heavy steel mandrels.
How does an automatic turret unwinder perform splices at 400 m/min without stopping?
The turret unwinder uses pre-drive motors to synchronize the surface speed of the new roll exactly to the active line speed, followed by pneumatic knife cutting and tape adhesion inside a fraction of a second, preventing line deceleration and tension drop.
What register accuracy can a fully automatic ELS rotogravure press maintain?
A fully automatic ELS rotogravure press paired with optical pre-registration and closed-loop servo correction maintains longitudinal and transverse color register accuracy within ±0.05 mm throughout 400 m/min continuous web operation.
