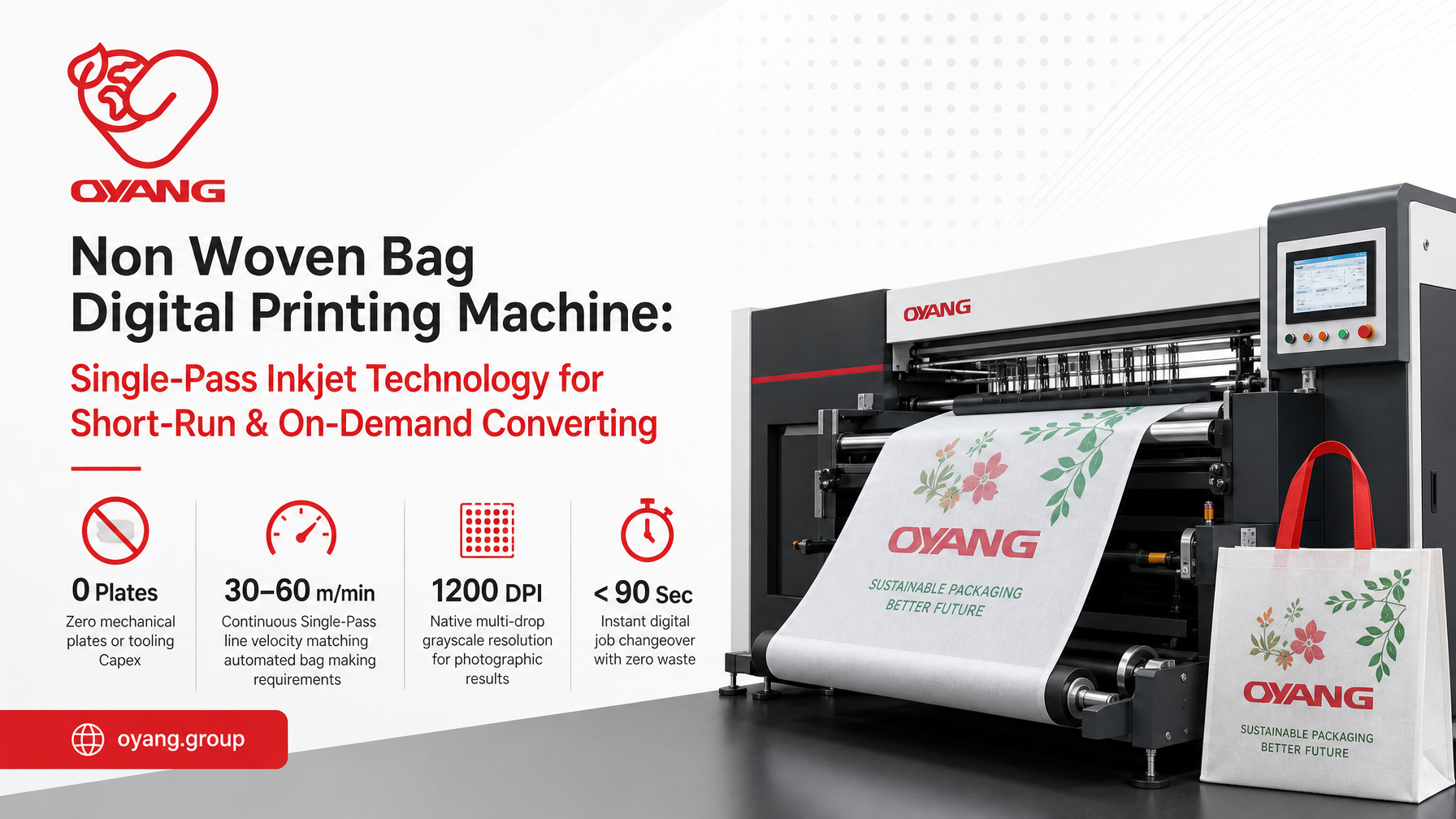

Non Woven Bag Digital Printing Machine: Single-Pass Inkjet Technology for Short-Run & On-Demand Converting

An industrial non woven bag digital printing machine utilizes stationary Single-Pass piezo drop-on-demand (DOD) printhead arrays to deliver photographic CMYK printing directly onto continuous polypropylene (PP) spunbond webs at linear velocities up to 60 m/min. By completely eliminating photopolymer plates, color separation films, and mechanical registration adjustments, Single-Pass technology reduces pre-press setup from 4 hours down to under 90 seconds, enabling profitable short-run customization (1 to 3,000 units), photographic image reproduction at 600×1200 DPI, and instant variable data coding for agile e-commerce supply chains.

0 Plates

Zero mechanical plates or tooling Capex; print directly from RIP vector/raster files.

30–60 m/min

Continuous Single-Pass line velocity matching automated bag making requirements.

1200 DPI

Native multi-drop grayscale resolution reproducing micro-text and photorealistic skin tones.

< 90 Sec

Instant digital job changeover with zero chemical washup or solvent purge waste.

Single-Pass vs. Multi-Pass Scanning vs. Flexographic Converting

Converters evaluating digital printing on nonwoven shopping and box bags face a critical architectural choice. Traditional wide-format scanning plotters (Multi-Pass) traverse back and forth across a moving substrate; while inexpensive, their low output (20–45 m²/hour) renders them incapable of supplying commercial bag converting lines. Single-Pass printing replaces the reciprocating carriage with a static, full-width printhead bridge under which the web travels continuously.

Operational Dimension	Industrial Single-Pass Digital	Scanning Multi-Pass Plotter	4-Color Central Impression Flexo
Production Velocity	30–60 m/min (Continuous web-fed)	0.5–1.2 m/min (Intermittent shuttle)	80–150 m/min (High-speed roll-to-roll)
Plate / Cylinder Tooling Cost	$0 USD (Direct file print)	$0 USD (Direct file print)	$250–$600 USD per design set
Pre-Press Setup & Make-Ready	< 90 Seconds (File RIP upload)	3–5 Minutes (Software indexing)	1.5–3.5 Hours (Plate mounting & register)
Start-Up Web Waste per Job	< 2 Meters (Direct electronic sync)	0.5 Meters (Sheet / small roll feed)	80–180 Meters (Tension & color tuning)
Variable Data & Serialization	Native (Unique QR, barcode per bag)	Supported, but extremely slow	Impossible without offline inkjets
Economic Break-Even Run	1 to 3,500 Bags	1 to 150 Bags	> 5,000 Bags

Ink-Substrate Dynamics: Water-Based Pigment on Spunbond Polypropylene

Nonwoven polypropylene presents a low surface energy (typically 30 to 32 dynes/cm) and an irregular fibrous topography composed of thermally calendered diamond or cross-point bonds. Jetted picoliter ink droplets must wet out sufficiently to adhere without excessively wicking along fiber channels (“feathering”).

1. Precision Jetting & Variable Droplet Control

OYANG Single-Pass digital platforms utilize industrial piezoelectric printheads (such as Kyocera or Epson I3200 micro-piezo clusters) with native 600 DPI channel pitch. By modulating the piezoelectric driving waveform, the heads deliver multi-level variable grayscale droplets ranging from 3.5 pl to 14 pl. Ultra-fine 3.5 pl droplets construct smooth photographic skin tones and subtle gradient transitions without banding, while larger 11–14 pl droplets flood saturated solid background blocks, maximizing optical density without exceeding drying capacity.

2. Polymer Surfactant Optimization & Zero Bleeding

Jetting onto polypropylene without solvent etching requires specialized water-based resin-encapsulated pigment inks. These formulations integrate organic co-solvents and fluorinated leveling surfactants that temporarily lower dynamic surface tension to match the nonwoven substrate. Upon contact with the fibrous matrix, a rapid phase inversion occurs: the resin binds the sub-micron pigment particles to the surface while preventing capillary migration into the interstitial fiber voids, maintaining clean line edges down to 0.15mm text sizes.

3. Dual Negative-Pressure Recirculation & Anti-De-priming

In high-speed Single-Pass environments, ink stagnation or micro-air bubbles can cause nozzle dropouts, producing unprinted white streaks across entire rolls. OYANG systems integrate a continuous through-flow negative-pressure ink recirculation system directly behind the nozzle plates. The ink flows across the nozzle orifices at a controlled flow rate, instantly carrying away microscopic air bubbles, suppressing pigment sedimentation, and ensuring stable jetting across 24/7 continuous production shifts.

The Cost Dynamics: When Does Digital Overtake Conventional Printing?

The economic crossover point between Single-Pass digital and flexographic printing is dictated by the amortization of photopolymer plates, pre-press labor, and startup substrate waste. Below is a detailed total conversion cost comparison for an order of 2,000 four-color shopping bags (50 g/m² PP nonwoven, 350mm × 450mm dimensions):

Cost Component	Conventional 4-Color Flexo	OYANG Single-Pass Digital	Operational Variance
Photopolymer Plates (4 Colors)	$360.00 USD ($90 / plate)	$0.00 USD	-$360.00 Saved
Pre-Press Setup Labor (2.0 Hrs)	$50.00 USD ($25 / hr)	$3.75 USD (0.15 Hr file check)	-$46.25 Saved
Substrate Startup Waste (120 m)	$28.80 USD (Nonwoven scrap)	$1.20 USD (5 meters web alignment)	-$27.60 Saved
Ink Consumable Expense	$14.00 USD (Low-cost flexo ink)	$48.00 USD (Digital pigment ink)	+$34.00 Ink cost premium
Cleaning Solvent & Disposal	$12.00 USD (Wash chemicals)	$0.00 USD (Automated cap station)	-$12.00 Saved
Total Order Conversion Cost	$464.80 USD	$52.95 USD	Digital Saves 88.6% on 2,000 Bags
Unit Printing Cost per Bag	$0.232 USD / Bag	$0.026 USD / Bag	Massive Capex & Time Advantage

Step-by-Step Workflow: From Customer Vector File to Rewound Roll

Deploying a Single-Pass digital printing line eliminates the convoluted chemistry of plate washing, exposure, and mechanical shimming:

Automated RIP File Pre-Flight: The operator ingests customer artwork (PDF/TIFF) into the dedicated ColorGATE or Caldera Raster Image Processor (RIP). The software converts RGB photographic gamuts to calibrated CMYK curves and applies ICC color profiles matched to the specific nonwoven fabric density.
Automated Head Purging & Meniscus Setting: The automated capping station lowers. A motorized vacuum squeegee wipes the nozzle plates, while the digital negative-pressure controller establishes a -1.2 kPa to -1.5 kPa ink meniscus, preventing dripping.
Continuous Web Infeed & Tension Locking: Nonwoven master rolls are mounted onto the pneumatic expansion shaft. Closed-loop load-cell rollers stabilize web tension at 15 N to 25 N to prevent wrinkles beneath the 1.0mm printhead flying gap.
Single-Pass Direct Jetting: The nonwoven web advances smoothly under the stationary printhead bridge at 35–50 m/min. Inks are deposited in a single sweep with instant pixel drop placement.
Medium-Wave Infrared (IR) & Warm-Air Curing: The printed web passes through an enclosed curing tunnel operating at 50°C–58°C. High-velocity air circulation accelerates water flash-off within 6 to 9 seconds, cross-linking the binder resin without shrinking the PP fibers.
Direct Web Rewind or Inline Bag Converting: The fully dried web is wound onto clean rolls with edge-guiding photoelectric sensors, immediately ready for feeding into automated nonwoven box bag machines (such as the OYANG 16S or TECH 23).

OYANG Industrial Digital Printing Systems

Engineered to bridge the gap between fast e-commerce turnaround and industrial production volumes, OYANG digital systems are built on rigid ductile cast foundations machined inside our 130,000&mflat; CNC base to eliminate mechanical vibrations:

OYANG PSW-1000: Industrial Single-Pass Digital Press

Continuous web-fed digital inkjet printing line engineered for nonwoven fabric rolls, paper webs, and flexible substrates. Designed for short-to-medium runs requiring zero plate costs.

Max Printing Width: Up to 1000mm full coverage
Printing Speed: 30–60 m/min continuous velocity
Color Capability: Industrial CMYK (+ optional White or Spot)
Resolution: 600 × 1200 native DPI

Explore Digital Systems

Video Demonstration: High-Speed Digital Nonwoven Printing in Action

Frequently Asked Questions (FAQ)

What is a Single-Pass digital non woven bag printing machine?

A Single-Pass digital non woven bag printing machine utilizes a stationary bridge of fixed piezoelectric inkjet printheads spanning the entire web width. As the continuous nonwoven roll feeds beneath the heads, the complete full-color image is jetted in a single sweep at speeds up to 30–60 m/min, without requiring a reciprocating scanning carriage.

What is the break-even order quantity between digital and flexo printing?

The typical economic break-even point sits between 3,000 and 5,000 bags. For order volumes below 3,000 units, Single-Pass digital printing is significantly cheaper and faster because it eliminates $250–$600 USD in photopolymer printing plate costs, 2 hours of pre-press mounting, and 100+ meters of raw material startup waste.

Does water-based pigment ink wash out or rub off non woven fabric?

No. Industrial nonwoven digital inks contain specialized water-based polymer cross-linking resins. When exposed to infrared and warm-air curing at 50°C–58°C, the resin forms an insoluble, abrasion-resistant polymer film around the pigment particles, meeting standard industrial dry-and-wet rub fastness ratings (Grade 4 or higher).

Can a digital non woven printer print photorealistic gradients and barcodes?

Yes. With native resolutions up to 600×1200 DPI and variable multi-drop grayscale control (3.5 pl to 14 pl), Single-Pass digital presses reproduce continuous photographic skin tones, complex vignettes, scannable high-resolution QR codes, and individualized serialized data on every consecutive bag.

Can digitally printed non woven rolls be fed directly into automatic bag making machines?

Yes. Because the Single-Pass printer incorporates online infrared drying tunnels and active web tension rewinders, the printed fabric cures completely within seconds. The finished rolls can be transferred immediately to automatic 3D box bag machines (such as OYANG 16S or TECH 23) without ink offset, blocking, or ink cracking during ultrasonic welding.

Calculate Your Digital Printing Feasibility & ROI

Eliminate plate overhead and capture profitable high-margin short-run packaging orders. Consult with OYANG digital printing application specialists to receive ink consumption calculations, printed fabric samples, and commercial proposals.
