A non woven box bag machine with indirect tape applicator incorporates a patented intermittent adhesive feeding mechanism engineered to apply double-sided release tape exclusively onto structural bonding zones, lifting clear over side gusset fold lines. By eliminating continuous tape application across redundant non-bonding spans, this indirect gluing bag machine architecture eliminates approximately 140 mm of tape consumption per finished bag. For converting operations running at continuous velocities of 80 to 100 bags per minute, this mechatronic skip-taping system reduces annual tape procurement expenses by $16,793 USD per machine while preventing adhesive gumming on rotary cutoff knives.
The Engineering Flaw of Continuous Adhesive Tape Application
In the production of re-sealable 3D non-woven box bags or bags requiring reinforced top-mouth closures, pressure-sensitive double-sided release tape is introduced inline. On traditional converting machines, tape unwinds under uninterrupted friction against the advancing substrate:
- Redundant Gusset Coating: The tape is laid across the entire continuous bag circumference—spanning the front panel, back panel, and both side gussets. When the 3D box bag expands at retail, the inward-folded gusset portions provide zero mechanical closure or bonding utility.
- Blade Gumming and Web Snap: Unprotected adhesive crossing crease lines repeatedly contacts transverse cutting shears and pneumatic creasing fingers. Adhesive accumulation requires manual solvent wiping every 3 to 4 hours, causing line halts and web jams.
- Runaway Consumable Costs: Packaging converters effectively pay for hundreds of kilometers of structural tape every month only to fold it into dead, unexposed interior seams.
Financial Engineering Model: Calculating the $16,793 USD Annual Savings
The cost difference between full-width continuous taping and OYANG’s box bag glue saving technology can be mathematically quantified using standardized industrial production baselines:
Tape Consumable Reduction Formula
Annual Savings = Daily Bag Output × Annual Operating Days × Saved Tape Length × Unit Tape Cost
Factory Baseline Parameters:
• Operating Speed: 80 bags/min
• Shift Architecture: Two 10-hour shifts/day (20 hours total running time at 85% OEE = 81,600 bags/day)
• Annual Operating Days: 300 production days/year (Annual Line Output = 24,480,000 bags)
• Standard Bag Format: 320 mm (Width) × 280 mm (Height) × 140 mm (Side Gusset Width)
• Saved Tape Length per Bag: 140 mm (0.14 m)—the exact side gusset span skipped by indirect taping
• Industrial Tape Unit Cost: $0.0049 USD per linear meter ($4.90 USD per 1,000 m commercial spool)
Engineering Result: Upgrading from continuous taping to an indirect applicator amortizes its equipment sub-assembly cost within 4 to 6 months purely through adhesive spool savings without modifying bag tensile strength or grammage.
For complete plant operating expense analysis and fabric conversion economics, review our technical analyses on non woven box bag machine price models and servo specifications and non-woven bag manufacturing profit margin and consumable cost guides.
Mechanical Operation: Dual Electronic Eyes & Cam-Synchronized Pneumatic Shearing
Unlike continuous contact pinch rollers, OYANG’s non woven bag tape applicator utilizes an integrated high-speed mechatronic assembly driven through the machine’s master EtherCAT motion bus:
Dual Photocell Sensors
High-precision dual optical sensors track registration marks on pre-printed webs in real time, calculating the exact millisecond coordinate where the front panel terminates and the side gusset starts.
Pneumatic Cam Lift & Cut
A low-inertia pneumatic cylinder lifts the tape applicator head away from the web during gusset passage. An integrated micro-serrated blade shears the tape cleanly without adhesive dragging.
Zero-Slip Electronic Tensioning
To prevent tape elongation or snapback under rapid intermittent starts and stops (cycling 80–100 times/min), an independent torque servo maintains constant unwind tension on the tape spool.
Performance Matrix: Continuous Taping vs. OYANG Indirect Tape Applicator
| Performance Factor | Legacy Continuous Taping Unit | OYANG Indirect Tape Applicator System |
|---|---|---|
| Adhesive Application Mode | Continuous uninterrupted web contact | Intermittent servo-controlled skip taping |
| Tape Consumption per Bag (320 × 140 mm bag) | Full web span (460 mm) | Bonding face only (320 mm; saves 140 mm) |
| Annual Tape Cost (80 BPM Line) | $55,178 USD / year | $38,385 USD / year (Saves $16,793 USD) |
| Blade Gumming & Cleaning Downtime | High (Requires daily solvent cleaning) | Negligible (Cutters contact clean fabric only) |
| Maximum Operational Converting Velocity | 60 – 75 bags/min (Tape web tension drag) | 80 – 100 bags/min (Zero drag during skip phase) |
| Finished Bag Opening Performance | Gussets occasionally stick together internally | Smooth, clean 3D box bag pop-open action |
Japanese MAZAK & OKUMA CNC Machining Guarantees Taping Precision
Intermittent mechanical cycling at 100 bags per minute requires the pneumatic tape arm to actuate, shear, and re-engage within a 40-millisecond window. Any mechanical backlash or vibration in the mounting bracket causes the tape to miss the target bonding zone, ruining the bag.

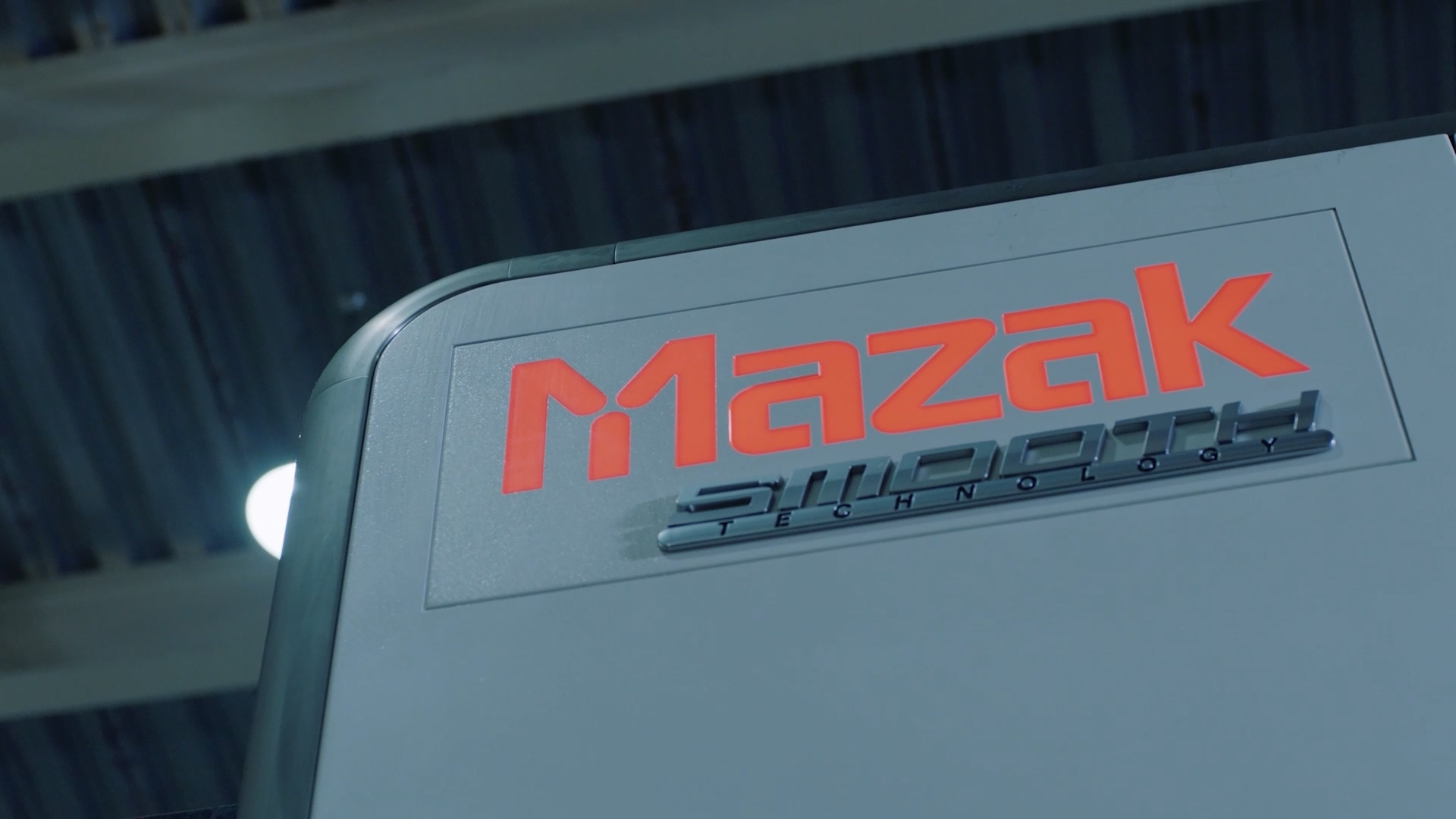

Figure 1: Precision machining of high-speed cam tracks and applicator mounting brackets on Japanese MAZAK CNC centers inside OYANG’s 130,000 m² production complex.
All tape applicator mounting bridges, pneumatic cylinder slide blocks, and guide rollers are machined on Japanese MAZAK and OKUMA 5-axis CNC machining centers to geometric tolerances of ≤ 0.015 mm. This structural rigidity ensures repeatable tape landing precision (±0.5 mm) across continuous 24/7 industrial production runs.
Featured Converting Lines Equipped with Indirect Taping
Figure 2: The OYANG 18 Fully Automatic Box Bag Machine configured with an integrated indirect tape applicator, saving up to $16,793 USD annually in tape procurement.
Figure 3: The TECH 23 Fully Automatic Box Bag Machine operating at 90–100 bags/min with 90-second automated mold changeovers and high-speed indirect tape dispensing.
Figure 4: The SMART 19 Nonwoven Box Bag Machine combining bus-synchronized motion control with optional indirect taping efficiency.
Video 1: Technical calibration, dual photocell sensor positioning, and pneumatic tension adjustment for the OYANG indirect tape applicator.
Related Technical Guides & Converting Resources
- → Non Woven Box Bag Machine Price & Specs: Review 15-axis to 46-axis servo configurations, casting tolerances, and official quotes for 3D box bag lines.
- → Non-Woven Bag Making Machine Cost & Buying Guide: Comprehensive Capex and selection matrix across flat D-cut, loop handle, and automatic folding systems.
- → Non-Woven Bag Manufacturing Profit Margin & Cost Guide: Raw fabric yield modeling, plant utility consumption, and finished bag unit cost calculations.
Frequently Asked Questions (FAQ)
What is an indirect tape applicator on a non woven bag machine?
An indirect tape applicator is an automated mechatronic attachment on a box bag making machine that intermittently applies double-sided adhesive tape only onto designated bonding areas while lifting off and skipping the side gusset sections, avoiding adhesive waste.
How does indirect taping save $16,800 USD annually?
By skipping adhesive application across both side gussets (saving approximately 140 mm of tape per bag), a production line operating at 80 bags per minute over two daily shifts saves approximately 3.42 million meters of tape per year, cutting consumable expenses by over $16,800 USD at typical commercial adhesive tape prices.
Does skipping tape application affect the structural strength of a 3D box bag?
No, the side gusset area does not participate in structural sealing when the bag is opened. Applying adhesive tape there is completely redundant, meaning skipping the gusset maintains 100% of the bag’s seal strength and loading capacity.
Can the indirect taping system handle different bag dimensions?
Yes, the application interval, start point, and cutoff length of the tape are adjusted digitally through the central touchscreen HMI, allowing operators to reconfigure taping patterns in seconds without replacing physical cams or linkages.
What types of double-sided tape can be used with this applicator?
The system is compatible with standard industrial hot-melt, water-based acrylic, and solvent-based release liner double-sided tapes ranging from 12 mm to 25 mm in tape width.
