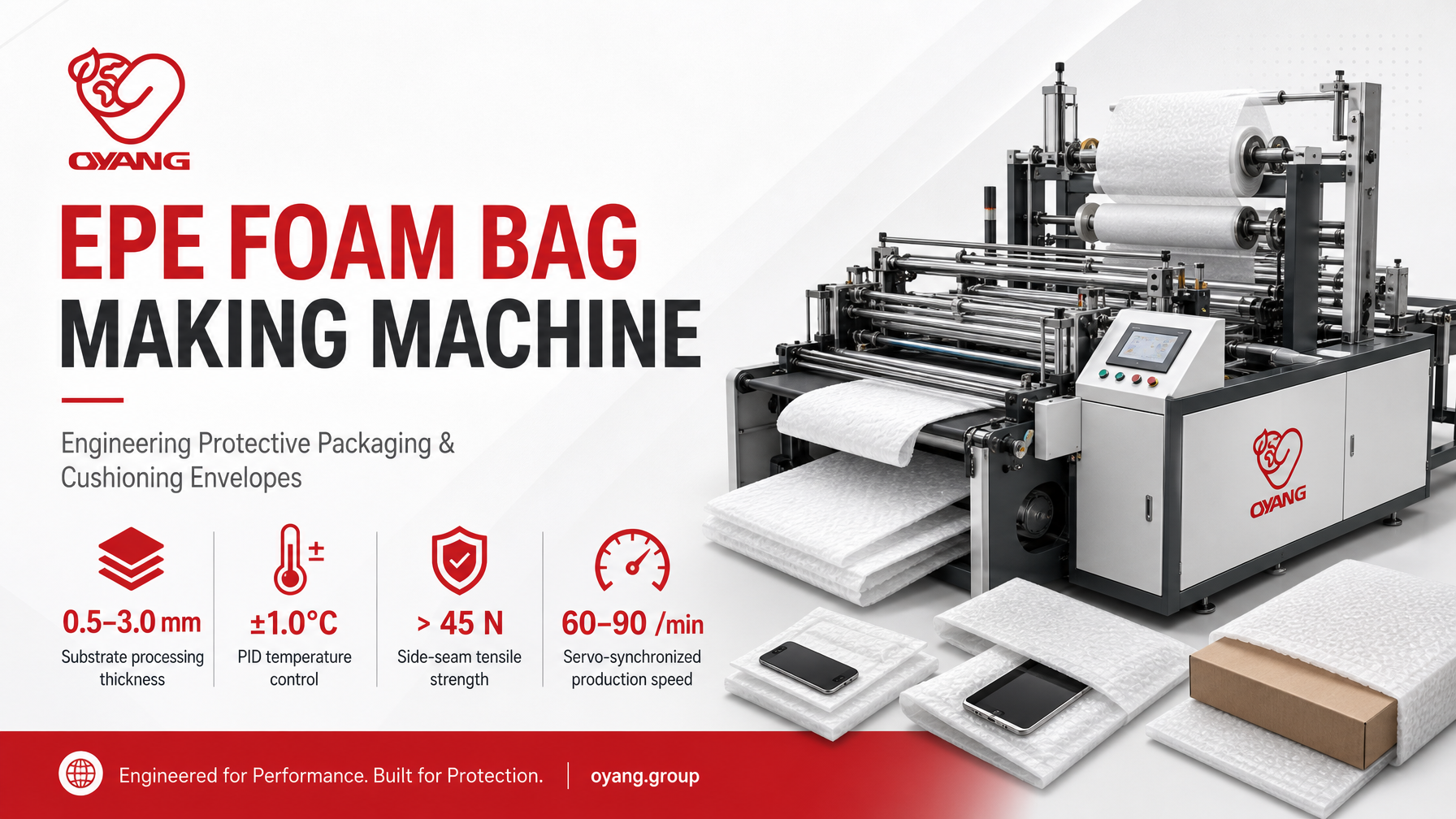

An industrial EPE foam bag making machine is an engineered converting line designed to process expanded polyethylene (EPE) sheet foam (thicknesses from 0.5mm to 3.0mm), laminated air bubble films, and composite nonwoven protective mailers. Unlike standard thin-film bag machines that overheat and collapse cellular air bubbles, specialized EPE converting lines utilize dual-sided constant-temperature heat-sealing bars synchronized with pneumatic boost cold-shear cutting. Operating with PID thermal tolerances within ±1.0°C, these machines eliminate burn-through defects and achieve seam tensile weld strengths exceeding 45 N at production rates up to 60–90 bags/min.
Substrate processing thickness for pure EPE sheet, multi-layer laminated bubble film, and composite foam.
Microprocessor PID temperature regulation preventing cellular gas pocket rupture and smoke generation.
Side-seam mechanical tensile shear strength withstanding heavy 3C electronics and drop impacts.
Continuous servo-synchronized production speed for e-commerce courier cushioning pouches.
Expanded Polyethylene (EPE) foam is fundamentally an engineered thermal insulator composed of thousands of independent closed-cell gas bubbles (density 18–35 kg/m³). When bag converters attempt to process EPE using standard rotary heat-wire or hot-knife cutters, severe structural failures occur:
Standard bag making machines rely on rapid contact heat transfer through thin poly films (20μm–80μm). Because EPE foam contains trapped air pockets, its thermal conductivity is extremely low ($$k \approx 0.034\text{ W/(m}\cdot\text{K)}$$). A conventional hot knife heats only the outermost surface skin while the inner foam core remains unmelted. Increasing the knife temperature causes the outer polyethylene skin to burn, emit toxic smoke, and degrade polymer chains, resulting in weak, unbonded side seams that split open when items are inserted.
Excessive thermal exposure ruptures the microcellular cell walls. As trapped gas escapes, the 2.0mm thick foam collapses into a razor-thin, brittle 0.1mm bead right along the seal line. This abrupt transition from thick resilient foam to an embrittled polymer bead creates a high mechanical stress notch, causing packaging mailers to fail catastrophically during shipping container vibration.
To overcome the insulating barrier of thick EPE and air bubble laminates, OYANG engineering incorporates a decoupled sealing-and-shearing mechanical cycle:
| Process Station | Conventional Hot-Knife Machine | OYANG Decoupled EPE Converting Architecture |
|---|---|---|
| Thermal Application | Single overhead reciprocating knife (Blade edge sealing) | Dual-sided copper-alloy heating bars (Upper & lower thermal penetration) |
| Heat Transfer Method | Direct contact cutting wire under tension | Controlled-dwell contact heating bar with Teflon-matrix non-stick coating |
| Web Cutting Mechanism | Thermal burn-melt through web | Independent pneumatic high-pressure cold shear blade (Crusher-free cut) |
| Seam Cooling / Quenching | Ambient air cooling on open belt | Water-chilled aluminum clamping jaws locking molecular crystallization |
| Seam Integrity & Thickness | Weak, brittle film bead (< 15 N tensile) | Reinforced fused polymer matrix retaining > 60% of original foam bulk |
E-commerce fulfillment demands hybrid protective structures combining cushioning with surface scratch protection or moisture shielding. Each composite formulation requires calibrated machine parameters:
| Composite Material Structure | Total Thickness Range | Optimal Sealing Temp | Pneumatic Nip Pressure | Target Industrial Application |
|---|---|---|---|---|
| Pure Virgin EPE Sheet | 0.5mm – 2.0mm | 165°C – 180°C | 0.25 – 0.35 MPa | Appliance scratch protection, glassware sleeves |
| EPE Foam + LDPE Film Laminate | 1.0mm – 3.0mm | 175°C – 195°C | 0.35 – 0.45 MPa | Waterproof courier mailer bags, automotive spare sleeves |
| EPE Foam + PP Spunbond Nonwoven | 1.0mm – 2.5mm | 185°C – 210°C | 0.45 – 0.55 MPa | Luxury handbag dust covers, high-end furniture wrap |
| Co-Extruded Air Bubble Film + EPE | 2.0mm – 5.0mm (Compressed) | 190°C – 220°C | 0.50 – 0.60 MPa | Heavy-duty 3C electronic courier envelopes |
| Aluminized Foil + EPE Thermal Barrier | 1.5mm – 3.0mm | 205°C – 230°C | 0.55 – 0.65 MPa | Cold-chain pharmaceutical & perishable food liners |
Converting resilient, elastic foam roll-stock requires specialized tension control to prevent permanent foam compression before forming:
To establish a complete protective packaging manufacturing cell, OYANG manufactures a comprehensive suite of precision converting machines engineered inside our 130,000&mflat; CNC manufacturing facility:
Heavy-duty master roll slitter rewinder for wide foam webs, protective nonwoven laminates, and barrier film rolls with precision taper tension control.
Thermal extrusion coating unit that bonds PE film, aluminized barriers, or spunbond nonwoven to EPE sheet substrates, producing high-barrier cushioning composite rolls.
Automatic bundling and bagging line that gathers stacked protective foam envelopes into outer waterproof polythene bundles, reducing manual warehouse labor.
Eliminate weak seams, burnt edges, and low converting speeds. Send your EPE foam and bubble laminate rolls to the OYANG engineering laboratory for complimentary weld testing and cycle-time validation.
