5 in 1 Non Woven Bag Making Machine: OYANG XB700 Multi-Format Automation
Engineered to consolidate diverse pouch converting into a unified manufacturing platform, the OYANG XB700 non woven bag making machine (often searched across the industry as the b700 non woven bag making machine) delivers high-versatility output at 40–100 pcs/min. Serving as an all-in-one 5 in 1 non woven bag making machine, the XB700 integrates continuous roll-feeding, multi-station ultrasonic bonding, and zero-waste inline punching to convert flat shopping sacks, soft handle carriers, patch handle pouches, and high-volume grocery sacks across standard d cut non woven bag making machine configurations, retail u cut non woven bag machine formats, and vest-style w cut non woven bag making machine demands on 30–100 gsm polypropylene substrates.
Converting Bottlenecks: Overcoming Waste & Registration Drift in Multi-Bag Operations
Converters attempting to run multi-format nonwoven bags on low-tier machinery consistently encounter material waste, punch blade wear, and weld delamination. Industrial audits reveal three persistent root causes:
1. Off-Line Punch Trim Scrap (5–8% Loss)
Conventional workflows rely on offline hydraulic punch presses to stamp handle openings, generating non-recyclable scrap rings and manual handling bottlenecks. High edge-trim loss directly inflates raw PP fabric consumption by 40–80 kg per production ton.
2. Blade Jamming & Die Misalignment
Executing U-cut and W-cut gusset trims at 1.5 Hz on flexible frames creates torsional blade deflection. An angular clearance variance greater than ±0.05 mm leads to ragged fabric threads, incomplete slugs, and frequent downstream gripper jams.
3. Thermal Frequency Drift at Side Welds
Multi-layer gusset intersections require substantial ultrasonic amplitude. Without real-time resonant frequency locking, sonotrode horns overheat, resulting in brittle pinholes on lightweight 35 gsm nonwoven or unbonded edges on 90 gsm reinforced layers.
Resolving these inefficiencies requires a fully synchronized multi-axis servo chassis that combines in-line slug extraction, automatic photo-tracking web aligners, and automated tooling changeovers.
Core Machine Platform: OYANG XB700/800 5-in-1 Converting Center

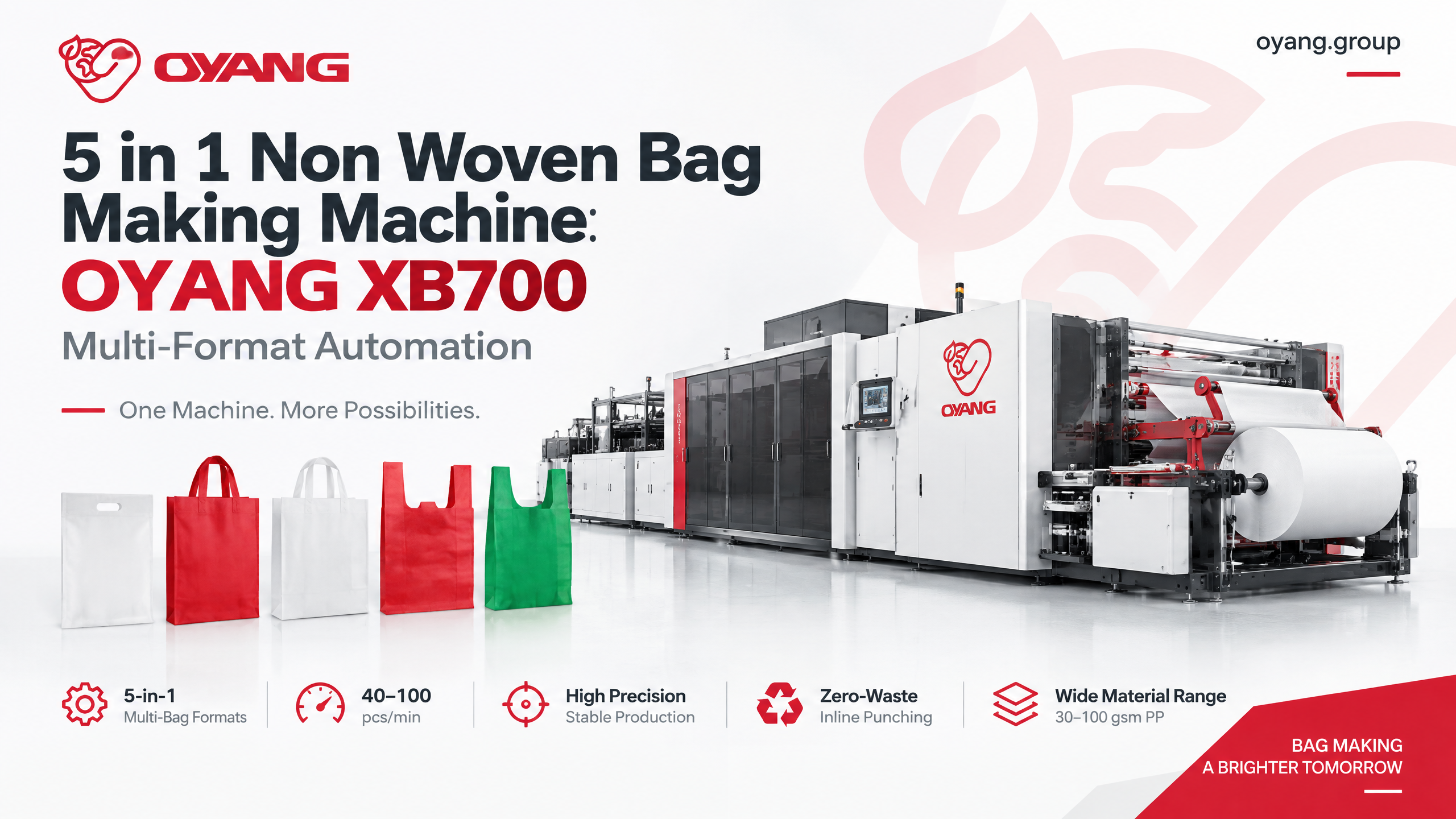

Figure 1: Fully Automated OYANG XB700/800 Multifunctional Nonwoven Bag Machine for D-Cut, Soft Handle, and T-Shirt Vest Bag Conversion.
The OYANG XB700 series combines roll unfolding, side-gusseting, loop handle welding, in-line punch indexing, ultrasonic edge hem sealing, and cross-cutting into a single continuous pass. By replacing separate manual cutting and sewing steps, one operator manages an output matching up to 5 individual conventional converting devices.
Versatility Engineering: Supported Bag Profiles & Kinematics
The XB700 converting topology accommodates rapid mechanical indexing across five prevalent nonwoven retail styles without chassis modifications:
| Bag Format Profile | Inline Tooling Mechanism | Operational Speed | Dimensional Envelope (W × L) | Target Market Sector |
|---|---|---|---|---|
| Flat Bag / Flat Pouch | Ultrasonic bottom fold & cut | 60–100 pcs/min | 100–800 mm × 200–580 mm | Pharma packaging, shoe dust bags |
| D-Cut Punched Bag | Hydraulic / Servo rotary punch | 50–90 pcs/min | 200–600 mm × 250–580 mm | Apparel retail, trade show giveaways |
| U-Cut / W-Cut T-Shirt Bag | Synchronous hydraulic shear die | 40–80 pcs/min | 200–500 mm × 300–600 mm | Supermarket grocery, takeaway sacks |
| Soft Loop Handle Bag | Automated ribbon feed & spot weld | 40–75 pcs/min | 250–600 mm × 300–580 mm | Boutique shopping, luxury retail |
| Drawstring / Rope Bag | Inline hem folding & cord threader | 40–70 pcs/min | 200–500 mm × 250–500 mm | Sporting goods, gift packaging |
Note: Dedicated continuous high-volume vest-bag lines can also be paired with the OYANG CP700/800 T-shirt bag making machine for dedicated W-cut roll-to-bag production exceeding 100 pcs/min.
Tooling Stability: CNC Frame Processing for Extended Cutter Life
The precision of multi-bag punching operations relies on zero-deflection mechanical beds. Manufactured within OYANG’s 130,000 m² smart production center, all primary wall plates and punch guidance towers undergo high-precision machining on Japanese OKUMA and MAZAK 5-axis machining lines.
- Die-Bed Coplanarity: Punch bed frames are milled to a flatness tolerance of ≤ 0.015 mm, eliminating cutter bounce and extending die edge life to >1.5 million cycles between sharpenings.
- Dynamic Photoelectric Web Tracking: High-resolution optical sensors detect printed register marks within ±0.5 mm, keeping handle cutouts centered across fluctuating line tensions.
- Frequency Auto-Lock Transducers: High-efficiency 20 kHz ultrasonic horns continuously track load resonance, delivering consistent weld margins on thin 30 gsm up to heavy 100 gsm fabrics.
Verified Machine Demonstrations & Engineering Downloads
Inspect kinematic operations, zero-scrap handle punching, and bag delivery sequences through technical engineering resources:
Related Engineering Guides & Technical Resources
Explore related machine benchmarks, rigid chassis comparisons, and box-bag manufacturing topologies:
- Best Non Woven Bag Making Machine: Brands Benchmarked & Kinematic Analysis — A technical evaluation comparing OYANG multi-axis servo architectures against regional assemblers.
- OYANG Leader Machine: High-Speed Nonwoven Box Bag Converting Solution — In-depth specifications on automated 3D box bag production and rapid 90-second mold setups.
Frequently Asked Questions (FAQ)
What are the specific 5 bag types produced by the 5 in 1 non woven bag making machine?
The OYANG XB700 5-in-1 system converts five distinct commercial designs: flat pillow bags, D-cut punched handle bags, U-cut grocery sacks, W-cut vest/T-shirt carrier bags, and soft loop handle shopping totes, with an optional modular station available for threaded drawstring bags.
What is the mechanical difference between the b700 and xb700 non woven bag making machine?
The B700 represents the earlier legacy mechanical-linkage model, whereas the XB700 is an upgraded multi-axis servo-driven platform. The XB700 features automatic electronic eye web alignment, dual-servo indexing rollers, intelligent ultrasonic auto-tuning, and heavy-duty OKUMA CNC-machined frame walls to eliminate harmonic vibration above 80 pcs/min.
How does an inline d cut non woven bag making machine eliminate fabric waste?
Unlike offline manual punching where whole folded bags produce significant handle scrap, the XB700 features an integrated servo-actuated punch that pierces the handle opening continuously along the web with immediate vacuum slug evacuation, cutting fabric edge waste by up to 8% per ton of converted rolls.
Can a single u cut non woven bag machine also run w cut non woven bag making machine orders?
Yes. Both U-cut and W-cut grocery formats share similar side-gusseting and vest-handle kinematic principles. The XB700 handles both variations via quick-release punch dies, allowing operators to change the cutting profile from U-cut to deep W-cut geometry in under 20 minutes.
