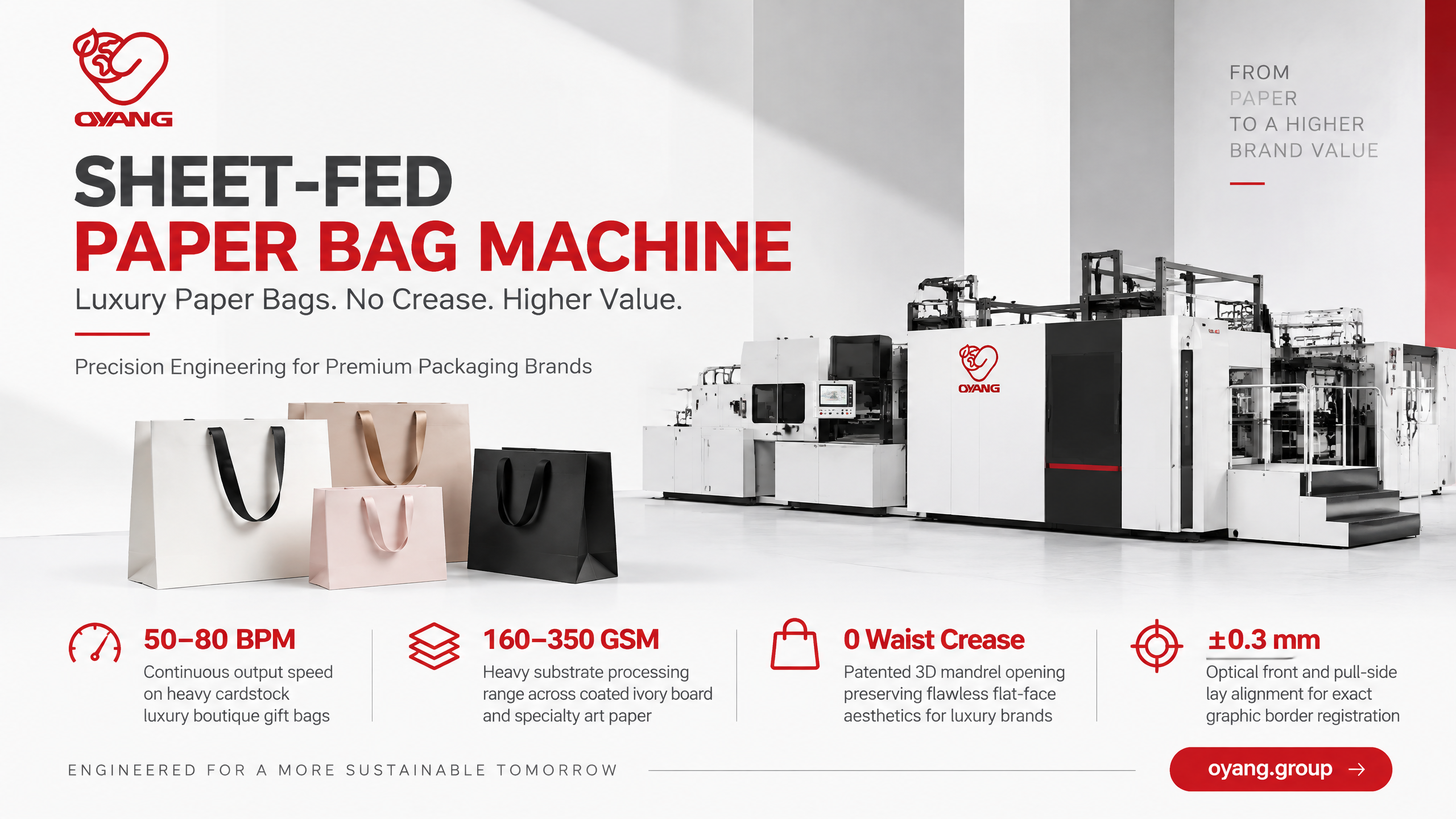

A high-end sheet fed paper bag making machine (also engineered in premium converting plants as a sheet feeding paper bag machine or sheet feed paper bag machine) eliminates the unsightly horizontal belly-crease line inherent to roll-fed SOS lines, converting individual pre-printed and die-cut paper sheets into rigid, luxury retail carriers. Designed specifically for boutique apparel, cosmetics, and jewelry packaging, the OYANG Great 4.0 Supreme Sheet-Fed Non-Crease Paper Bag Machine integrates high-velocity stream feeder suction, automatic top-mouth and bottom reinforcement card insertion, servo-driven tube creasing, and mechanical box-mandrel bottom opening. Operating on heavyweight 160 to 350 GSM art paper, ivory board, and laminated kraft sheets, the platform delivers continuous outputs of 50 to 80 bags per minute with registration tolerances maintained strictly within ±0.3 mm and zero surface scuffing on delicate hot-stamped or UV-lacquered finishes.
The Engineering Dilemma: Roll-Fed Creases vs. Sheet-Fed Luxury Integrity
In mass-market packaging conversion, roll-fed paper bag machines fold continuous webs into a tube, sever them transversely, and close the base using rotary bottom cylinders. This continuous high-speed mechanical motion requires folding the sack flat across its belly, permanently imprinting a horizontal crease (commonly termed the “waistline” or “crease line”) across both the front and rear panels of the finished bag.
For luxury fashion houses, cosmetic conglomerates, and premium spirit distillers, this horizontal fold line is unacceptable because it distorts embossed foil logos, fractures brittle UV coatings, and weakens the structural rigidity of the paper container.
A precision sheet fed paper bag machine solves this challenge by decoupling tube forming from bottom opening. Feeding individual, pre-cut, offset-printed sheets, the machine forms a pristine three-dimensional rectangular sleeve and closes the base via internal mandrels and tucking fingers without ever pressing the finished bag body flat.
To contrast the structural economics between continuous mass-production roll converting and specialized discrete converting lines, consult our comparative analysis on how paper bag making machine works: Step-by-step engineering principles.
Kinematic Principles of Non-Crease Luxury Box-Bag Conversion
Converting heavy cardstock (up to 350 GSM) into rigid rectangular carrier bags requires high mechanical positioning forces. The OYANG Great 4.0 sheet feeding paper bag making machine coordinates six synchronized mechatronic stations along its kinematic path:
1. Continuous Stream Feeder with Optical Pull-Lay Registration
Pre-cut sheets are loaded onto an automatic elevating feeder pile. A high-speed offset-style feeder head equipped with four pickup and four forward-forward suckers separates the top sheet. The sheet travels down a vacuum transport table where precision front lays and optical pull-side lays align the leading and lateral margins within ±0.3 mm before advancing to the creasing nip.
2. Top-Mouth Hemming & Automated Cardboard Insertion
To support heavy luxury loads and punch handle eyelets without tearing, the bag mouth must be reinforced. A dedicated auxiliary feeder cuts and positions rigid greyboard card strips (250–400 GSM) onto the top flap. Rotary applicators meter hot-melt adhesive, and mechanical folding blades fold the top edge over the reinforcing card in a continuous single-stroke operation.
3. Servo-Driven Tube Forming & Longitudinal Seaming
Cold PVAc emulsion or PUR hot-melt is applied along the lateral glue flap. Dual-axis servo arms fold the side panels inward over an adjustable center core mandrel. Elastic tracking wheels press the seam without surface marring, creating an open-ended four-sided rigid paper tube.
4. Patented Non-Crease Bottom Opening Mandrel
In legacy machinery, bottom opening requires flattening the entire bag tube between heavy steel pressure rollers, leaving permanent horizontal crease lines. In the Great 4.0 architecture, internal expanding mechanical mandrels enter the bottom of the open tube. Vacuum suction cups grasp the base from below while expanding corner fingers form the square bottom outwards in three dimensions, leaving the bag face completely smooth and uncreased.
5. Inline Bottom Reinforcing Card Insertion
Before the bottom flaps are sealed, an overhead servo manipulator dispenses a precision-cut base cardboard liner directly into the open bottom cavity. The card is locked into place with spot hot-melt adhesive, providing the rigid flat floor required for luxury retail presentation.
6. Hot-Melt Bottom Sealing, Compacting & Flat Delivery
High-pressure spray guns apply adhesive tracks across the overlapping bottom flaps. Pneumatically actuated folding platens close the bottom envelope, and a soft-belt compactor applies uniform pressure across the base only. The finished bags exit onto an indexing vertical collection table without any mechanical pressure applied to the main bag face.
Engineering Video: Great 4.0 Non-Crease Sheet-Fed Converting Kinematics
Observe the synchronized stream feeder, automated mouth card placement, and 3D bottom-forming mandrel running on the OYANG Great 4.0 platform:
Video 1: Real-time non-crease luxury carrier bag production on the OYANG Great 4.0 converting platform.
Field Engineering Diagnosis: Troubleshooting Sheet-Fed Converting Defects
Converting heavyweight coated board (200–350 GSM) demands tight mechanical tolerances. Surface coatings like soft-touch lamination, UV varnish, and foil stamping can cause feeding slippage or scuffing. Use this shop-floor calibration guide to address converting issues:
| Converting Defect | Root Mechanical / Physical Cause | Standard Workshop Calibration Protocol |
|---|---|---|
| Feeder Double-Sheet Feed / Jam | Static adhesion between heavy coated art sheets; blower air pressure inadequate at the sheet separator feet. | Increase rear fluffing blower air to 0.45 MPa; adjust mechanical double-sheet detector caliper gap to 1.2× sheet thickness. |
| Surface Scuffing on Dark Print / UV Lacquer | Steel transport guide rollers dragging on the sheet face; excessive nip pressure on side-seam folder belts. | Install Teflon-sleeved or polyurethane soft-touch idler rollers; reduce belt nip tension by 0.15 MPa; ensure vacuum table belts are clean. |
| Mouth Reinforcement Card Misalignment | Timing lag between card feeder rotary pushers and main sheet transfer grippers. | Advance card feeder electronic cam phase angle by 1.5° in the HMI; calibrate pneumatic suction timing on the card insertion arm. |
| Corner Rupture at Bottom Folds | Cardstock grain direction oriented parallel to fold line; insufficient die-crease penetration on 300+ GSM board. | Verify pre-die cut sheet grain runs perpendicular to main tube folds; adjust bottom mandrel opening stroke speed to reduce peak stress. |
Sheet-Fed Luxury Bag Machine vs. Roll-Fed SOS Machine: Technical Sizing Matrix
Packaging converters must align machinery selection with customer brand positioning and target production volumes. This technical matrix compares sheet-fed non-crease platforms with roll-fed converting lines:
| Technical Parameter | Sheet-Fed Luxury Line (Great 4.0 Supreme) | Roll-Fed SOS Converting Line (SMART-17 / TECH-18) |
|---|---|---|
| Substrate Feed Stock | Pre-printed, die-cut discrete paper sheets | Continuous master paper reels (roll-fed) |
| Paper Grammage Window | 160 – 350 g/m2 (Heavy Cardstock) | 60 – 180 g/m2 (Standard Kraft) |
| Face Crease (“Waistline”) | 100% Zero Waistline (Non-Crease Folding) | Standard transverse belly fold line present |
| Maximum Converting Velocity | 50 – 80 bags/min | 150 – 220 bags/min |
| Reinforcement Automation | Inline top-mouth card & base bottom card inserting | Optional top patch handle backing strip only |
| Target Market Application | Haute couture, luxury cosmetics, jewelry, premium watches | Supermarket grocery sacks, food delivery, retail carriers |
OYANG Flagship Engineering: The Great 4.0 Supreme Platform
Folding heavy 350 GSM cardstock with micrometer-level registration requires high rigidity throughout the machine frame. Lightweight welded steel frames can flex under reciprocal folding impacts, causing front-lay register drift. The Great 4.0 chassis is cast from high-density HT250 gray cast iron, pre-aged to relieve residual stresses, and precision-machined in climate-controlled MAZAK and OKUMA 5-axis CNC machining centers to ensure alignment tolerances within ≤ 0.015 mm:
OYANG Great 4.0: Supreme Sheet-Fed Non-Crease Paper Bag Machine
The Great 4.0 Supreme Sheet-Fed Non-Crease Paper Bag Machine represents the premier automated solution for luxury packaging manufacturers. Processing sheet lengths from 600 to 1250 mm and widths from 350 to 800 mm, it features automated top-folding, cardboard reinforcement insertion, and non-crease bottom forming at speeds up to 80 bags/min.
Figure 1: The OYANG Great 4.0 Sheet-Fed Non-Crease Converting Machine for luxury boutique bag production.
For plants balancing semi-automatic production bases with separate handle gluing cells, consult our operational report on semi-automatic vs. fully automatic bag machines: Labor vs. automation guide.
To review our multi-axis servo synchronization architecture and roll-fed kinematic sequences, explore our complete technical guide on OYANG Paper Bag Machine Guide: High-Speed Smart Packaging Solutions.
To verify the CNC machining tolerances and quality management standards behind our equipment, read about Ounuo Machinery: High-Precision Eco-Packaging Manufacturing at OYANG Group.
Related Technical Guides & Converting Resources
- → How Paper Bag Making Machine Works: Step-by-step kinematic sequence, servo axis coordination, and bottom-folding mechanics.
- → OYANG Paper Bag Machine Guide: In-depth technical breakdown of the TECH-18 and SMART-17 converting lines, servo kinematics, and inline handle integration.
- → Semi-Automatic vs. Fully Automatic Bag Machines: Labor overhead, format flexibility, and unit break-even comparisons.
- → Ounuo Machinery High-Precision Manufacturing: Explore the Japanese MAZAK and OKUMA 5-axis CNC machining bays powering OYANG Group’s machinery lines.
Frequently Asked Questions (FAQ)
What is a “non-crease” paper bag machine and how does it prevent the waistline fold?
A non-crease paper bag machine forms square bottom carrier bags without pressing the tube flat across its front and rear face panels. By using internal expanding 3D mandrels to open and seal the base while maintaining the bag tube in an open rectangular geometry, the machine eliminates the horizontal crease line typical of roll-fed converting lines.
Can a sheet fed paper bag machine handle coated ivory board and specialty laminated stock?
Yes. The OYANG Great 4.0 handles substrates from 160 up to 350 GSM, including one-side coated ivory board, bleached kraft, soft-touch matte laminated paper, and hot-stamped art paper. Vacuum suction transport belts and polyurethane guide rollers prevent scratches and scuffing on delicate surface coatings.
How does the inline top-mouth and base-cardboard inserting module work?
The machine incorporates two auxiliary card feeders. The first feeder cuts and positions reinforcing greyboard strips (250–400 GSM) under the top flap before hemming. The second servo manipulator positions a pre-cut base board directly into the opened bottom cavity before bottom gluing, providing rigid reinforcement for heavy luxury items.
What is the practical production capacity of a sheet feeding paper bag machine compared to manual folding?
While skilled manual workers produce approximately 30 to 45 luxury carrier bags per hour, the OYANG Great 4.0 converts 50 to 80 bags per minute (3,000 to 4,800 bags per hour). This automation reduces direct manual labor requirements by over 90% while improving placement accuracy to within ±0.3 mm.
